Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
121

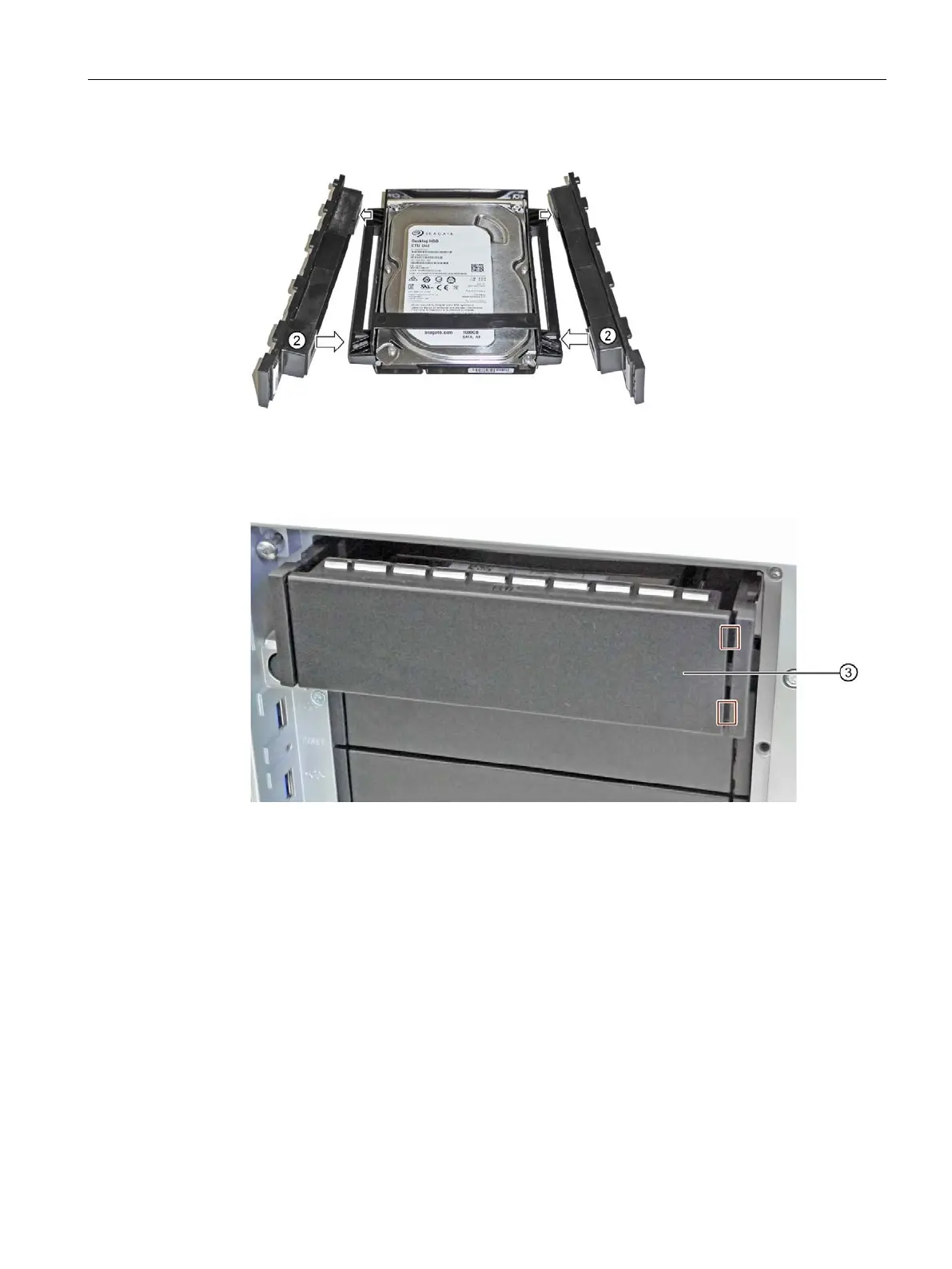

7. Attach the left and right drive mounting bars ②.
8. Slide the drive bay evenly into the guide rail of the drive cage 3/4 to the rear without tilting
it left or right.
9. Insert the drive bay cover
③ between the drive mounting bars ②. The pins must lock
into the openings on the left and right.
10. Push the drive bay in fully and evenly on the left and the right until you hear it click into
the drive cage.
11. Connect the power and data cables to the drive.
