5.3 Mounting with built-in ring light and EF lens
SIMATIC MV500
110 Operating Instructions, 03/2021, C79000-G8976-C494-05
12.Mount the reader on a suitable mounting fixture or holder (4x M4, 1-2 Nm).
Use the mounting plate for SIMATIC MV500 or a mounting device with matching holes.
Note that the reader has two different drilling templates (50 x 60/57 x 57).

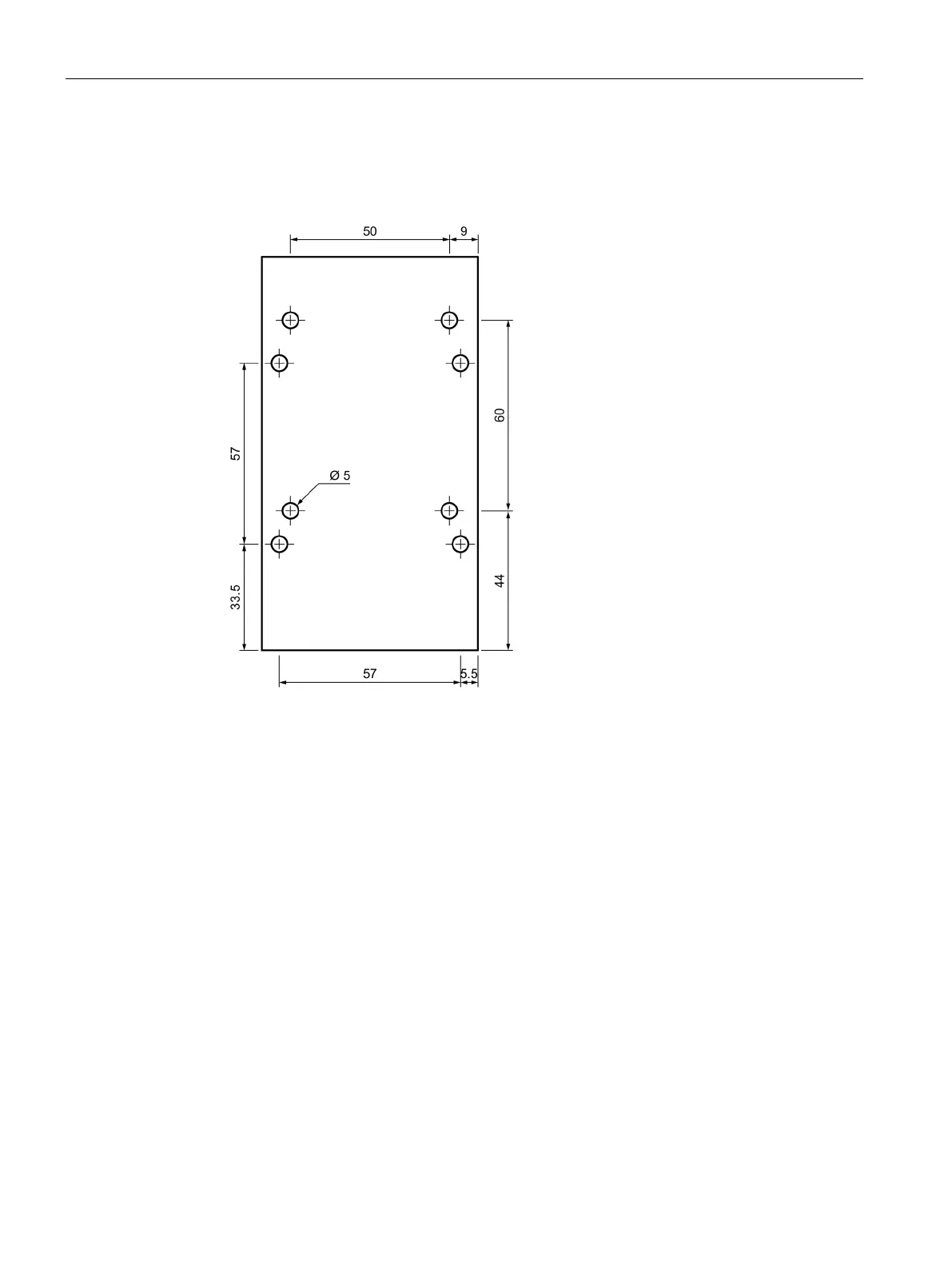

Figure 5-5 Hole template for mounting the SIMATIC MV500 optical reader
13.Select a suitable location to install the device.
