5.5 Mounting with external ring light
SIMATIC MV500
112 Operating Instructions, 03/2021, C79000-G8976-C494-05

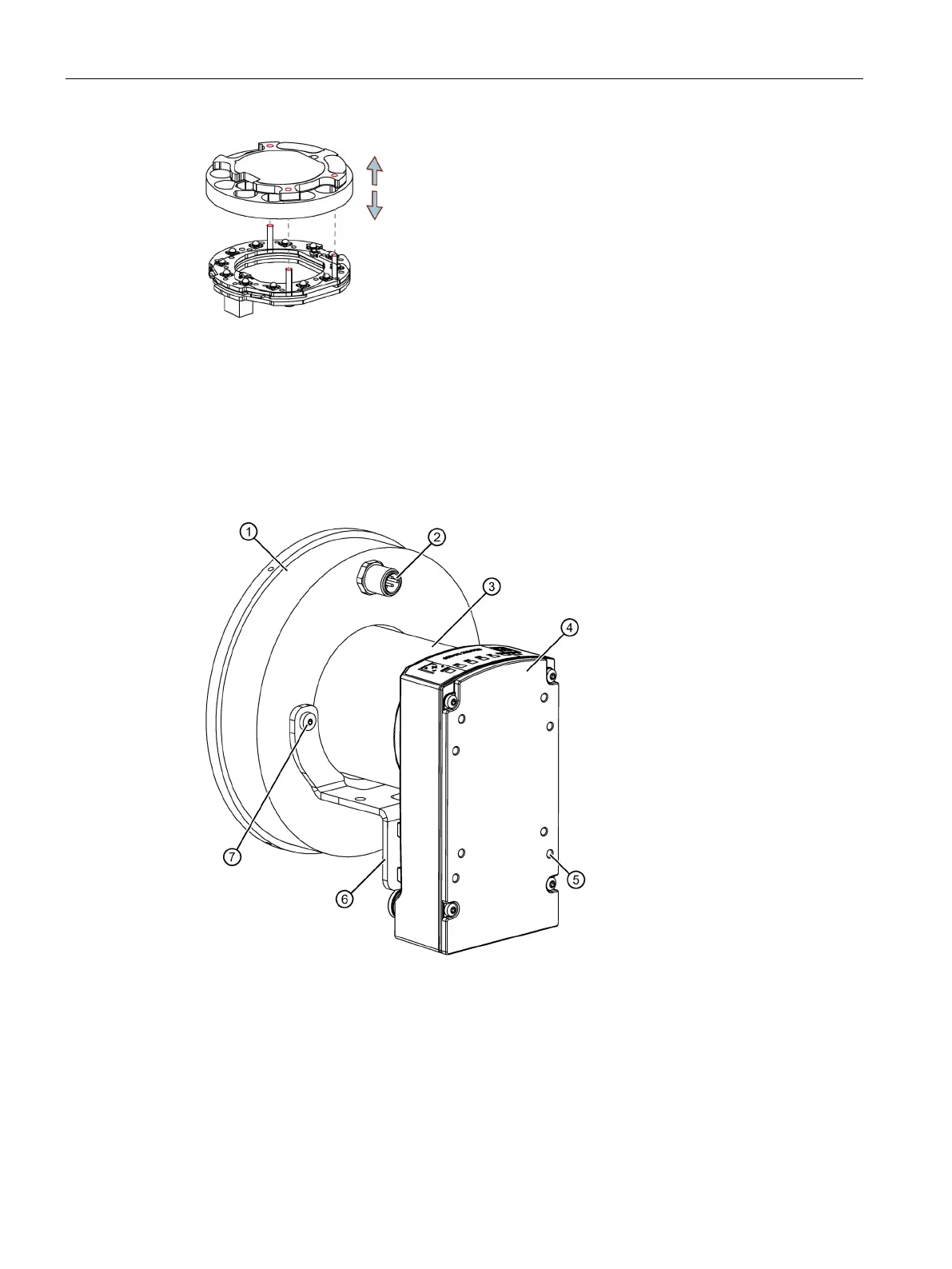

Figure 5-6 Changing a ring light attachment
5.5 Mounting with external ring light
If a lot of light is required for the applications, you can mount and connect an external ring
light. The external ring light is also used, for example, when the lighting is not parallel to the
viewing direction with strongly reflecting objects.
①
External ring light MV500
⑤
Mounting/fastening hole
②
Socket for lighting unit
⑥
External ring light holder
③
Protective lens barrel (∅ 65)
⑦
Securing screws
④
Optical reader
Figure 5-7 Setup of SIMATIC MV500 optical reader with external ring light
