Dimension drawings
12.3 Protective lens barrel extension for MV500
SIMATIC MV500
Operating Instructions, 03/2021, C79000-G8976-C494-05
257
12.3 Protective lens barrel extension for MV500

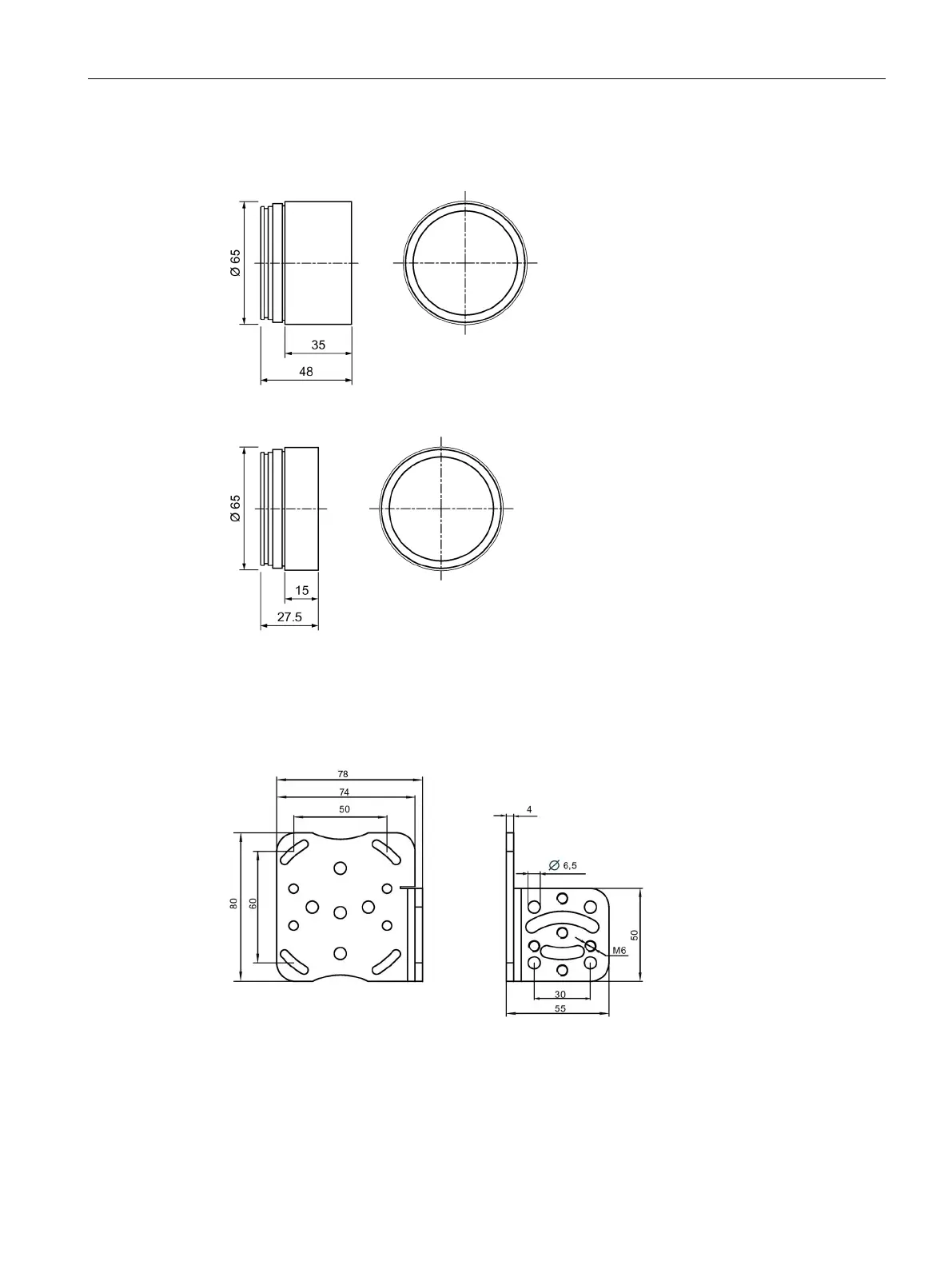

Figure 12-5 Protective lens barrel extension (35 mm)
Figure 12-6 Protective lens barrel extension (15 mm)
12.4 Mounting plate for MV500
Figure 12-7 Mounting plate for SIMATIC MV500
