Siemens SIMATIC MV500 - 12.6 Ring light (external); 12.7 Ring light holder for external ring light

Dimension drawings
12.6 Ring light (external)
SIMATIC MV500
Operating Instructions, 03/2021, C79000-G8976-C494-05
259
12.6 Ring light (external)

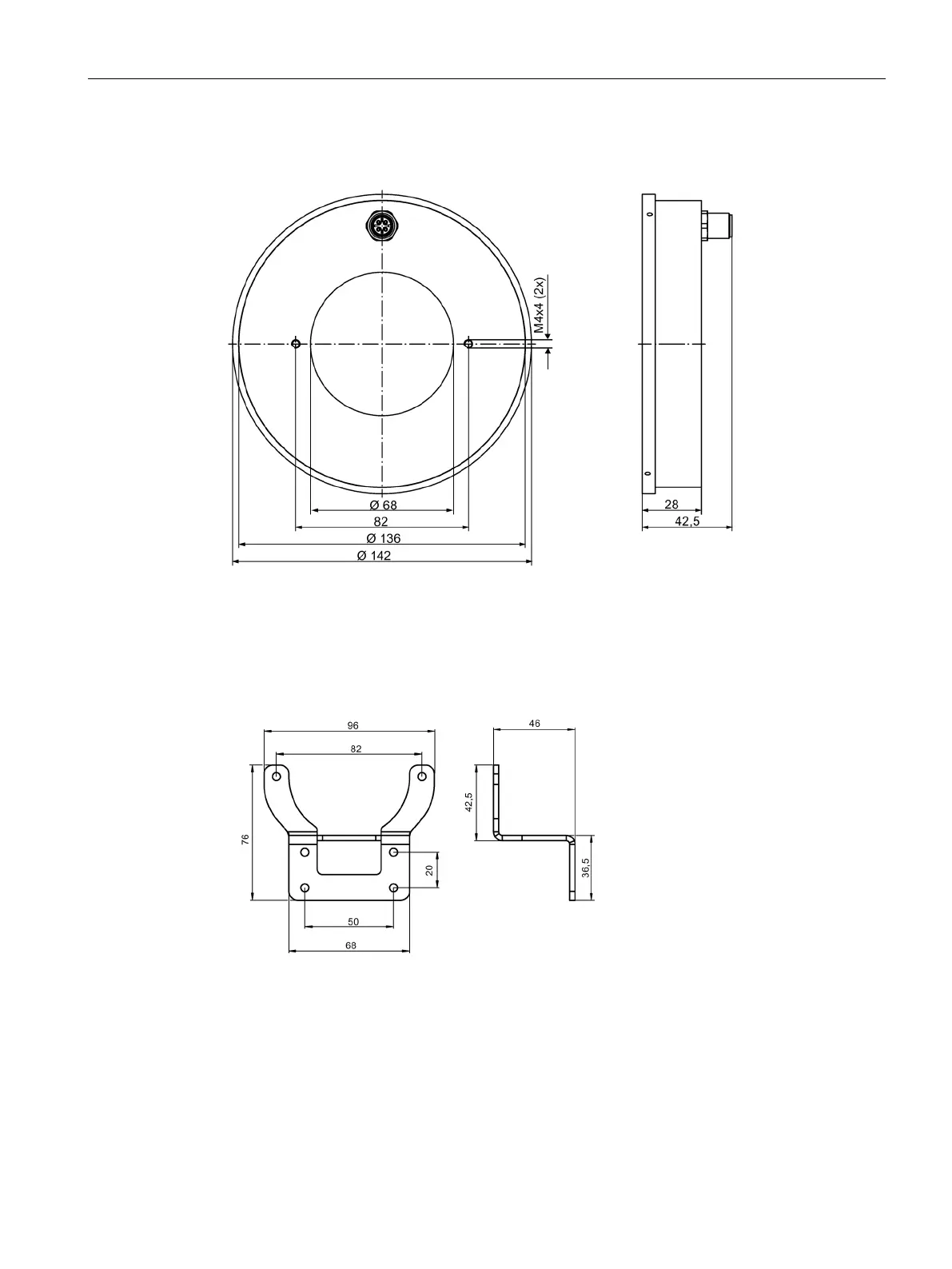

Figure 12-9 Ring light (external)
12.7 Ring light holder for external ring light
Figure 12-10 Ring light holder for external ring light
