Dimension drawings
12.5 SIMATIC MV500 with external ring light
SIMATIC MV500
258 Operating Instructions, 03/2021, C79000-G8976-C494-05
12.5 SIMATIC MV500 with external ring light

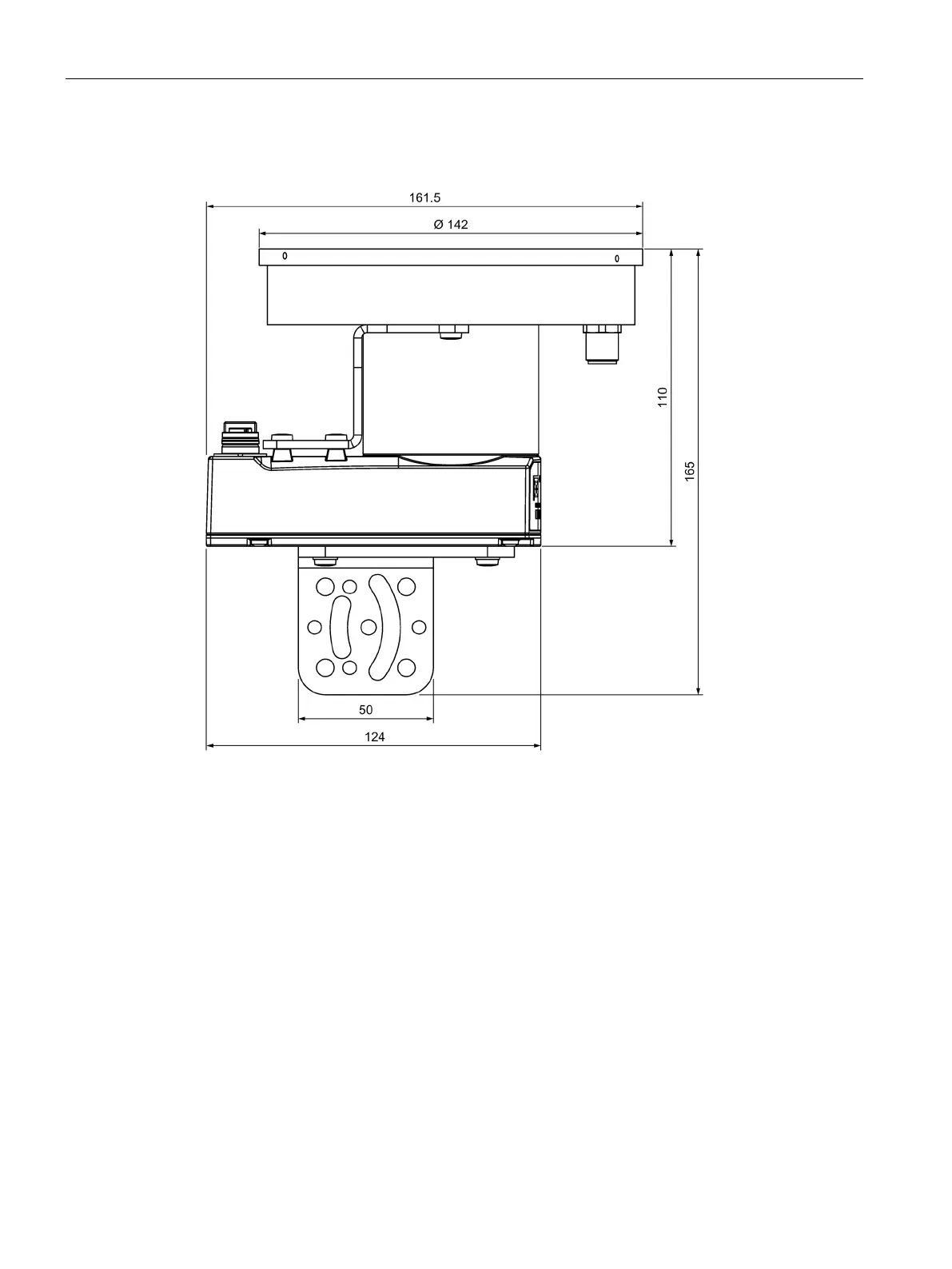

Figure 12-8 SIMATIC MV500 optical reader with external ring light and mounting plate
