Connection
6.5 Connection of external ring lights/floodlights
SIMATIC MV500
Operating Instructions, 03/2021, C79000-G8976-C494-05
125
6.5 Connection of external ring lights/floodlights
You can operate the optical reader with an external ring light or floodlight. Note that when
operating a SIMATIC MV500 with an external ring light / external floodlight, the power supply
must not be provided via a communication module.
Connecting an external ring light
Note
Use the "Strobe" output signal to operate external ring lights
You can operate external ring lights using the "Strobe" output signal. The strobe signal is high
active. The "high active" time corresponds to the on-load factor of the external ring light.
When you use an optical reader with an external ring light in your application, wire up your
application according to the following wiring diagrams.
External ring light holder
SIMATIC MV500 optical reader
Connecting cable external ring light

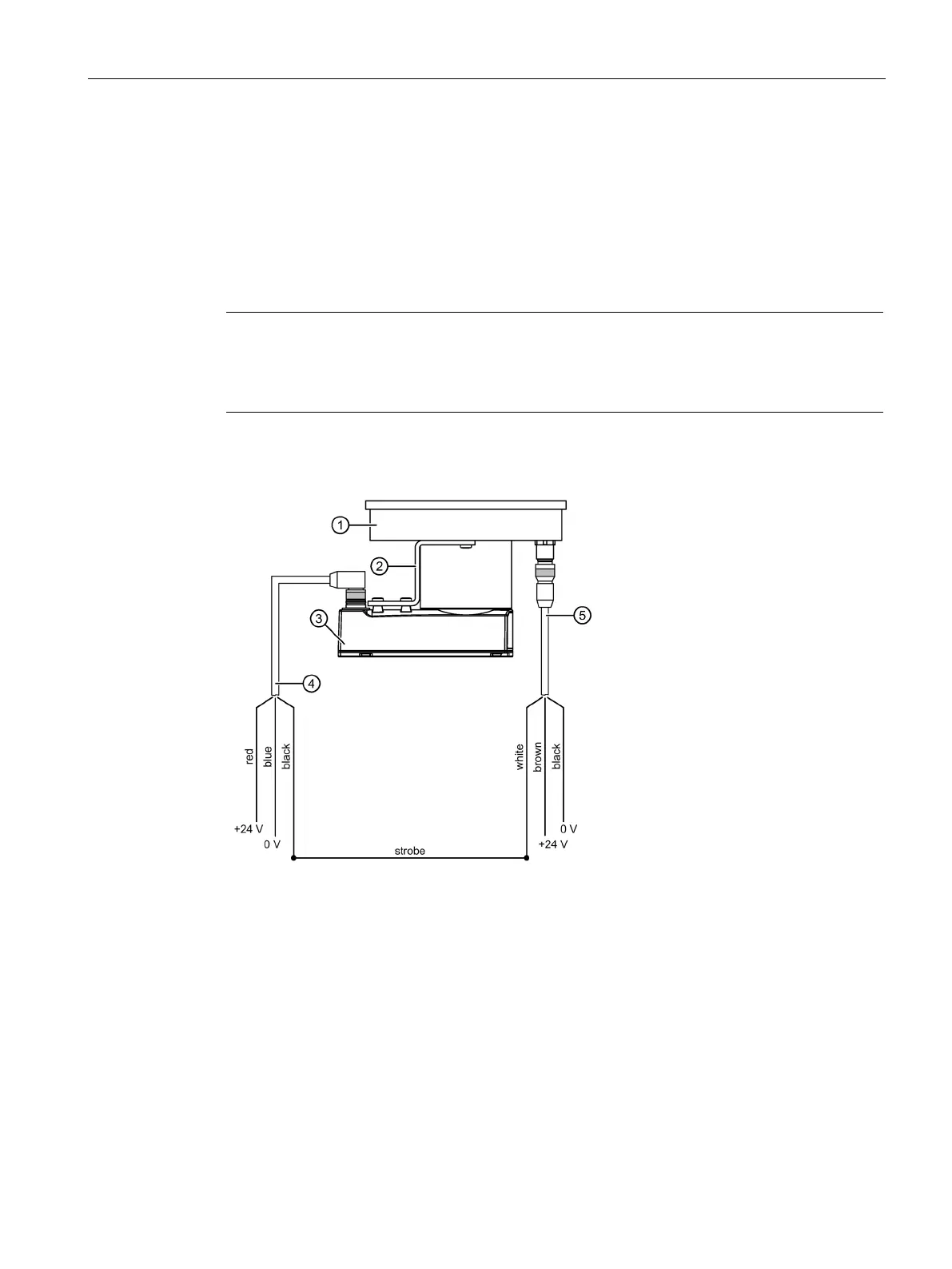

Figure 6-11 Connection and wiring for external ring light
