Connection
6.5 Connection of external ring lights/floodlights
SIMATIC MV500
126 Operating Instructions, 03/2021, C79000-G8976-C494-05
External ring light holder
SIMATIC MV500 optical reader

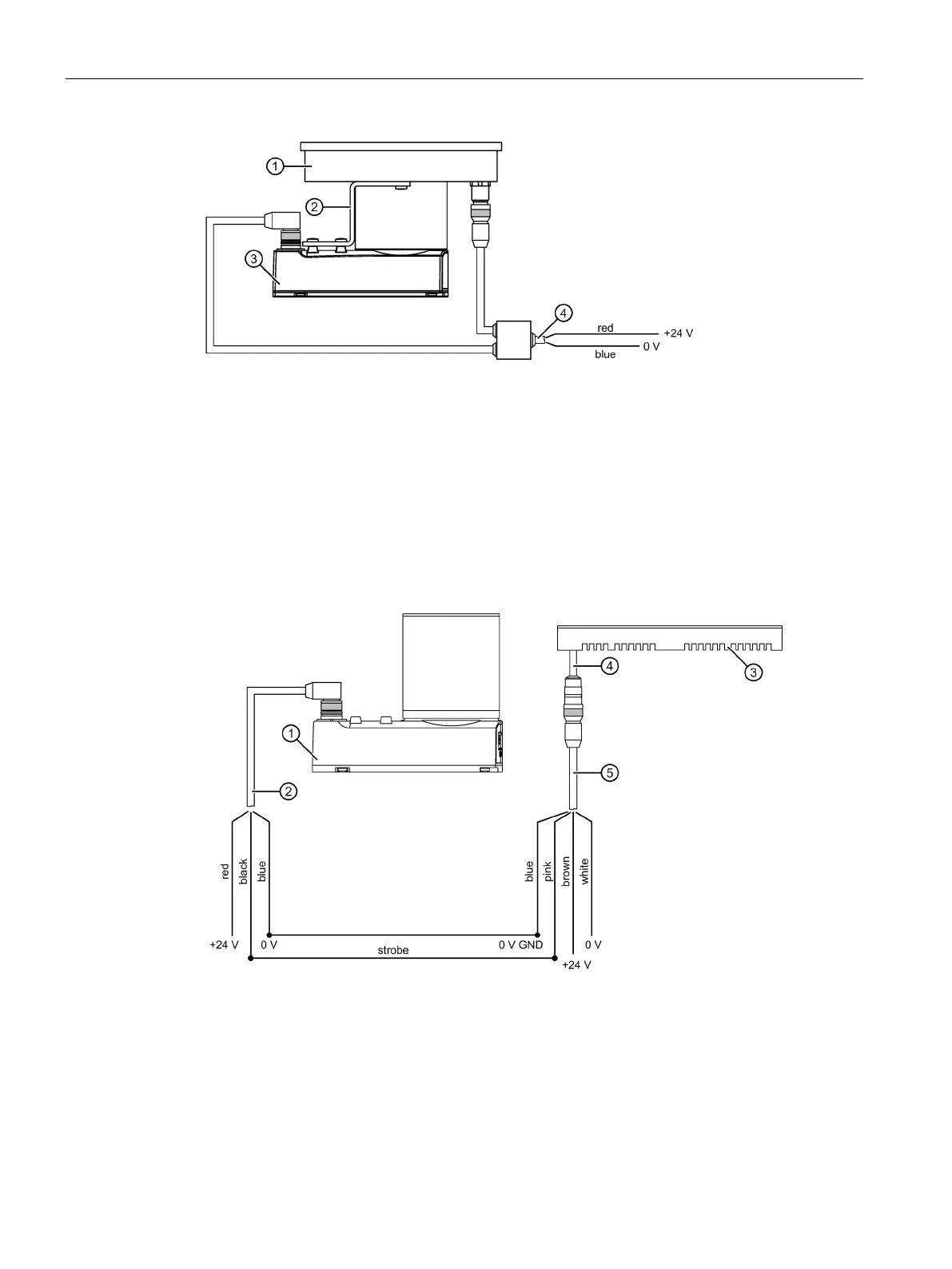

Figure 6-12 Connection and wiring for external ring light, with Y adapter
Connection of an external floodlight
When you use an optical reader with an external floodlight in your application, wire up your
application according to the following wiring diagrams.
SIMATIC MV500 optical reader
Floodlight connecting cable (15 cm) with M16 plug (12-pin)
Connecting cable (10 m), pre-assembled on one side with M16 socket (12-pin)
Figure 6-13 Connection and wiring for external floodlight
