Image processing
3.3 Object recognition with PAT Genius
SIMATIC MV500
Operating Instructions, 03/2021, C79000-G8976-C494-05
81

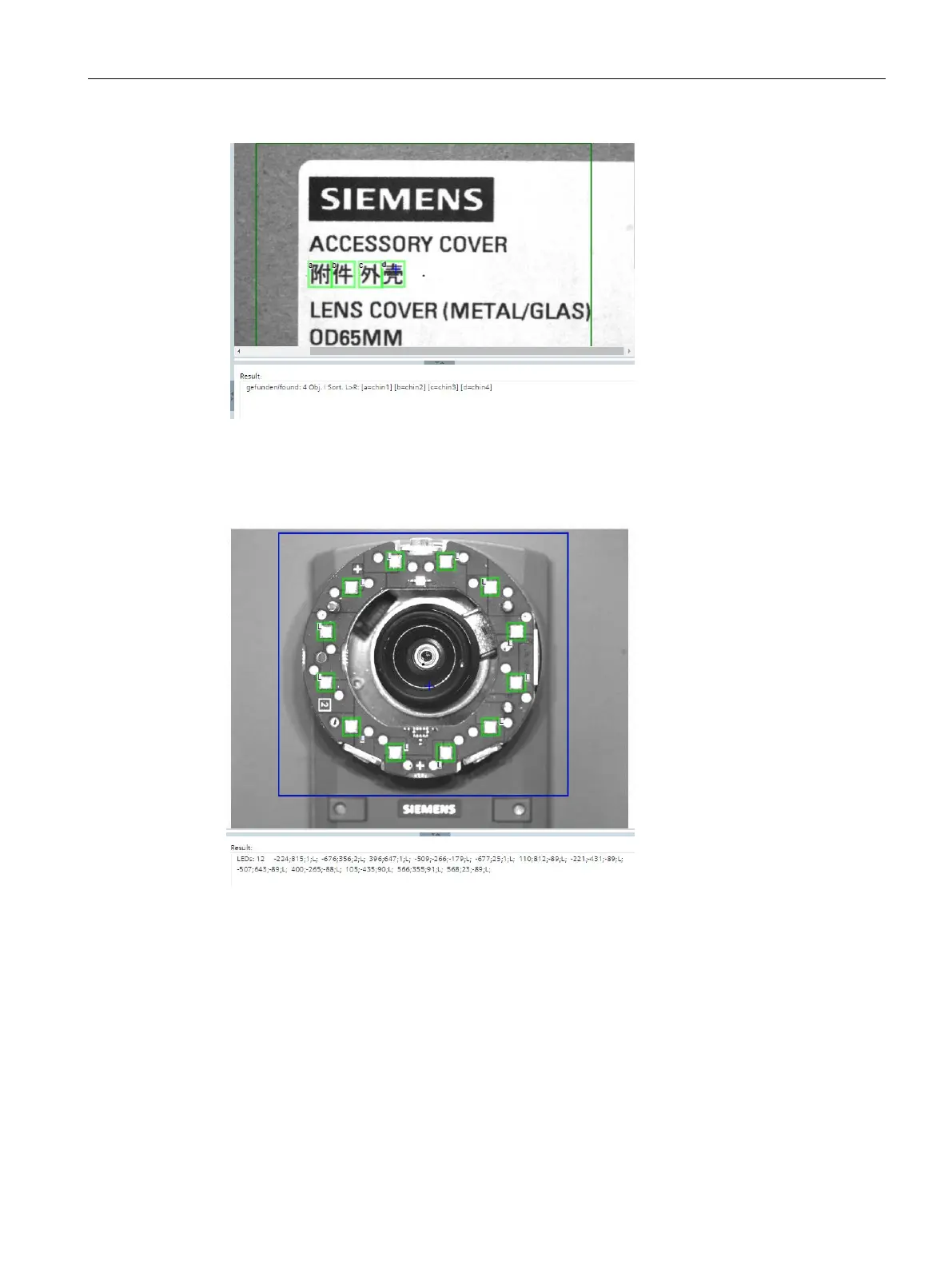

Figure 3-15 Recognition of Chinese characters
Example of a presence check
Figure 3-16 Presence check of LEDs including position output
3.3.4 Operation
Object recognition with PAT Genius is realized by inserting the step of the type "Add locator
step".
For a detailed description of the parameters and possible values, refer to the online help.
