Mounting
5.4 Mounting attachments for built-in ring lights
SIMATIC MV500
Operating Instructions, 03/2021, C79000-G8976-C494-05
111
5.4 Mounting attachments for built-in ring lights
The built-in ring lights are delivered fully assembled with the corresponding attachments. The
attachments that are included depend on the following factors:
• Built-in ring light (Basic, Remote, Multi)
• LED color of the ring light
The following table gives you an overview of the various attachments and the included filters,
as well as the corresponding built-in ring lights.

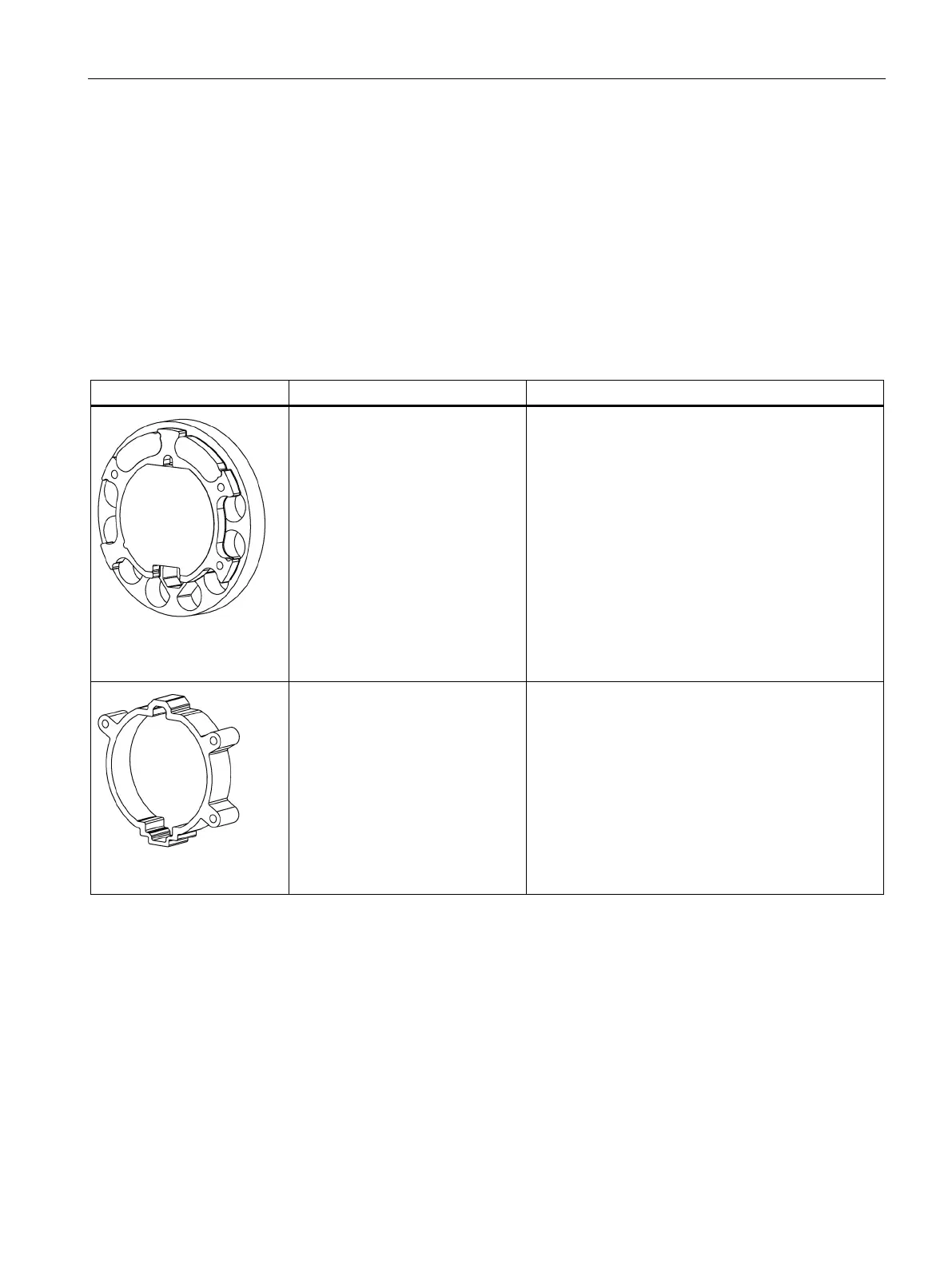

Table 5- 1 Ring light attachments
Suitable built-in ring lights
Attachment with polarization
filter
Built-in ring light (red/white, basic)
This attachment is equipped with a polarization filter.
It was specially developed for flexible use in the near
field and far field with white and red LEDs.
Anti-glare attachment
Built-in ring light (red/white, multi),
(red/infrared, basic)
This attachment allows unimpeded light propagation
with large radiation angles.
The anti-glare attachment was developed for applica-
tions with lenses with focal length ≤ 16 mm that have
to illuminate a wide field. This attachment prevents
illumination reflections on the cover glass of the pro-
tective lens barrel.
In addition, all built-in ring lights are supplied with the anti-glare attachment. When
mounting the screen, be careful not to squeeze it too tightly and ensure that it is flush with
the front pane.
Change ring light attachment
You can easily change the attachments by installing or removing them from the ring light.
When installing, make sure that the ring light and ring light attachment are aligned with each
other.
