Siemens SIMATIC NET PROFIBUS User Manual

Passive Components for RS-485 Networks
4-16
PROFIBUS Networks SIMATIC NET
6GK1970-5CA20-0AA1 Release 2 05/2000

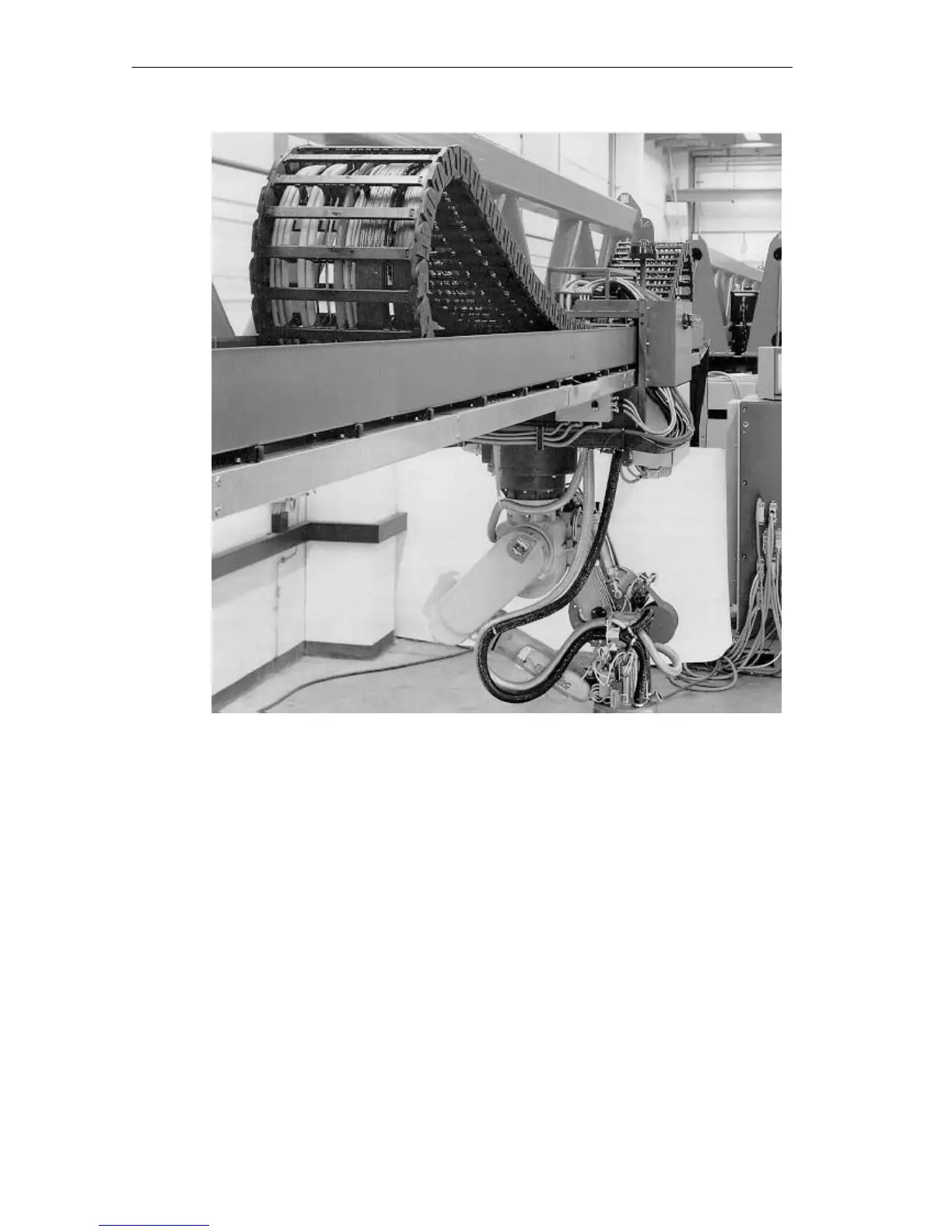

Figure 4-8 Example of Using the PROFIBUS Trailing Cable in a Drag Chain
Segment Lengths
Due to the increased loop resistance, somewhat shorter segment lengths are
permitted at low transmission rates (see Table 3.1). At transmission rates ≥ 500
Kbps, the trailing cable has the same values as the standard LAN cable.
