Siemens SIMATIC NET PROFIBUS User Manual

Testing PROFIBUS
A-3
PROFIBUS Networks SIMATIC NET
6GK1970-5CA20-0AA1 Release 2 05/2000
A.1.4 Design

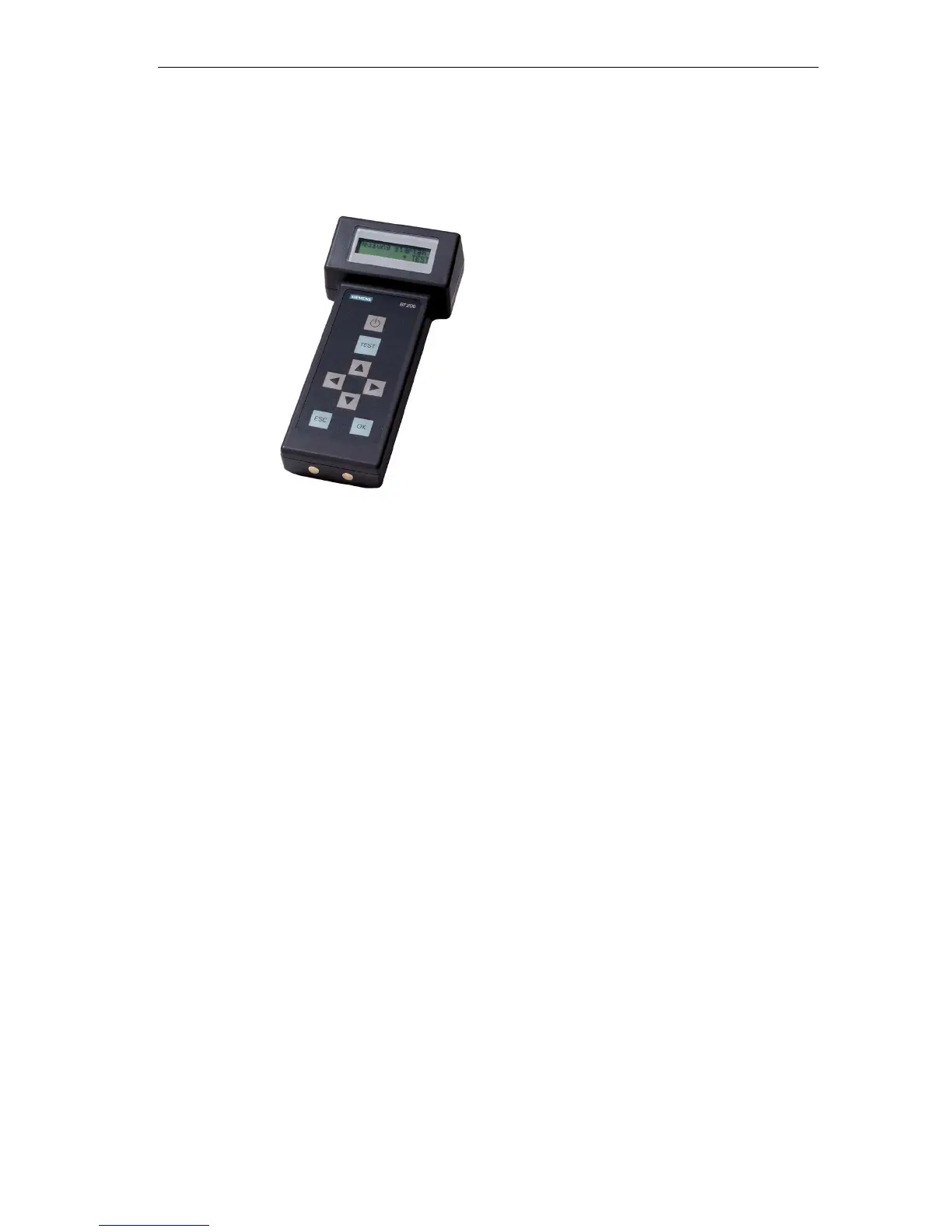

Figure A-1 Hardware Test Device BT200 for PROFIBUS DP
S Compact plastic casing, degree of protection IP 30
S Dimensions (W x H x D) in mm: approx. 210 x 100 x 50
S LCD Display with 2 x 16 characters
S Sealed keypad with eight buttons
S Attachment to the PROFIBUS network via 9-pin sub-D female connector
S Power supply from integrated NC battery
S Attachment to charger (accessories)
