Siemens SIMATIC NET PROFIBUS User Manual

Passive Components for RS-485 Networks
4-44
PROFIBUS Networks SIMATIC NET
6GK1970-5CA20-0AA1 Release 2 05/2000
4.5 Installing the Bus Connector with Axial Cable Outlet
Appearance (6GK1500-0EA02)
A1
B1A2B2
L
L
L
R2
L
R1
R3
A1B1A2B2 L
L
L
R2
L
R1
R3

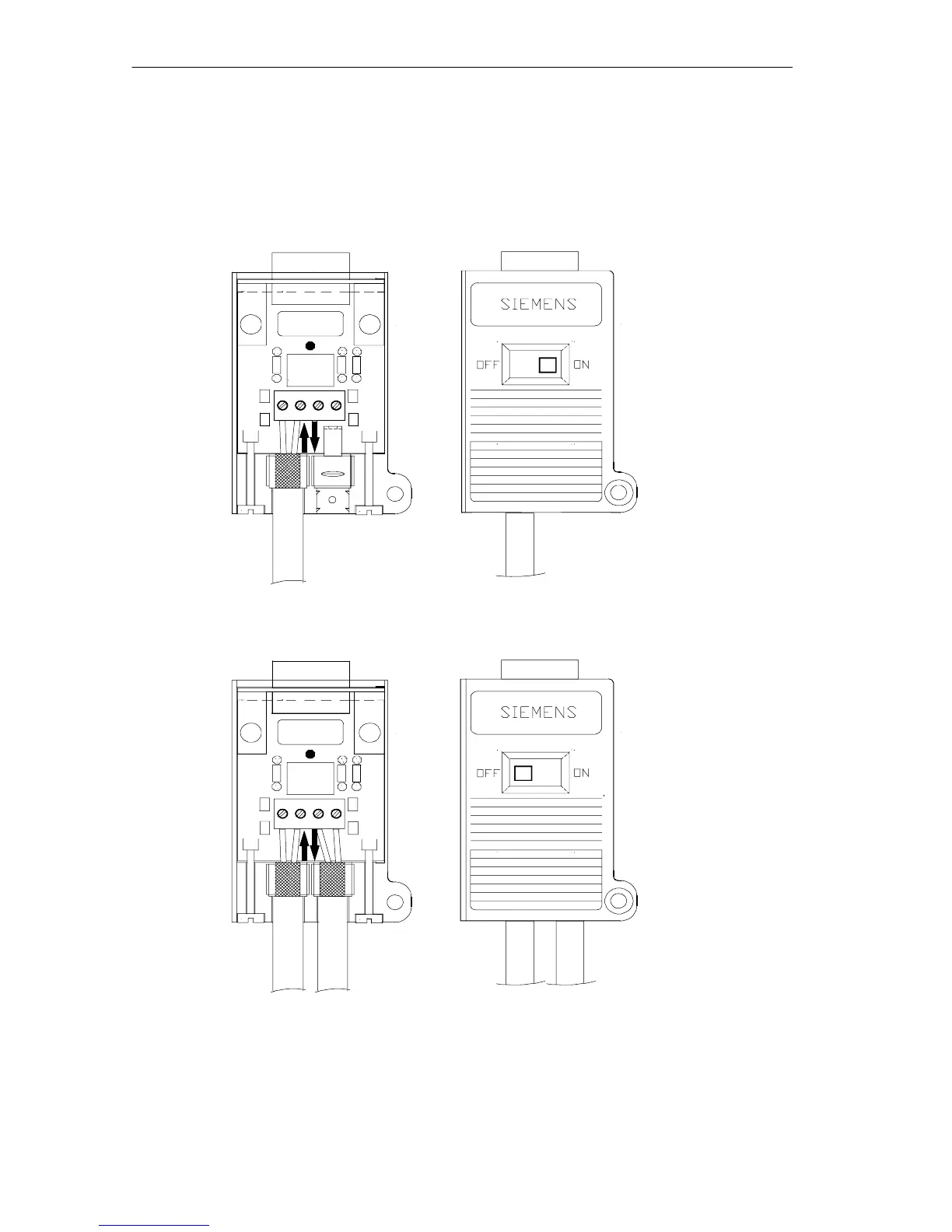

LAN Cable Connection and Switch Setting for First and Last Station on the Bus
LAN Cable Connection and Switch Setting for all Other Stations on the Bus
Figure 4-24 Installing the Bus Connector with Axial Cable Outlet
