4.1.9 SIENOPYR-FR Marine Cable
Cores, stranded copper
Outer sheath of
halogen-free polymer
Inner sheath of
halogen-free
polymer
Copper braid shield
Aluminum foil
Cellular PE
insulation
Dummy cores

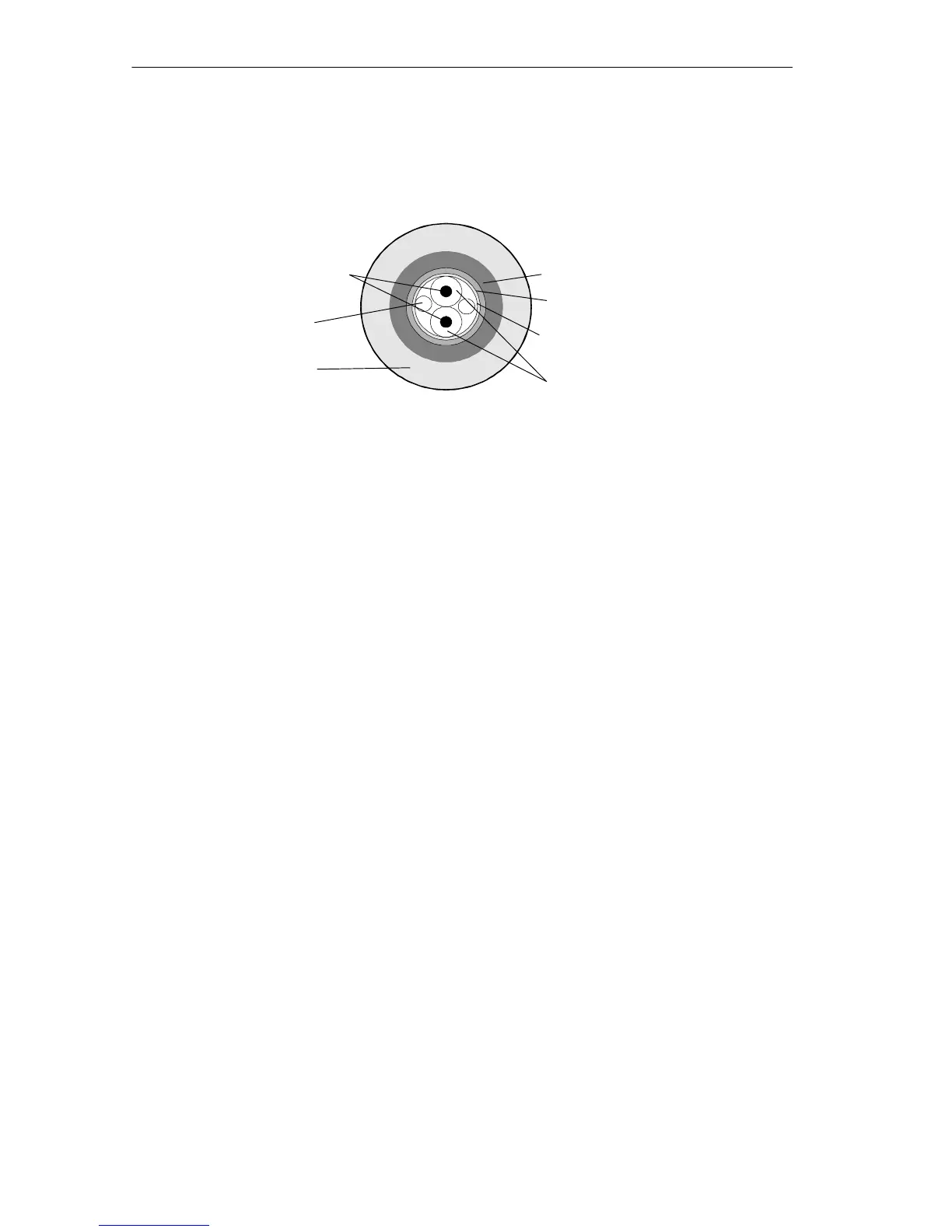

Figure 4-12 Structure of the SIENOPYR-FR Marine Cable
SIENOPYR-FR Marine Cable 6XV1830-0MH10
The SIENOPYR-FR marine cable meets the requirements of EN 50170, cable type
A. The inner conductor consists of 7-strand copper (approximately 22 gauge). The
outer sheath of cross-linked, halogen-free polymer is extremely resistant to
lubricants and fuels, hydraulic fluid, cold cleansing agents and deionized water.
The outer sheath of the SIENOPYR-FR marine cable can be removed separately
so that the inner sheath can be fitted into all PROFIBUS connectors with an 8 mm
cable inlet.
The cable is not suitable for use of the FastConnect (FC) stripping tool.
Properties
The SIENOPYR-FR marine cable has the following properties:
S Halogen-free
S Resistant to diesel fuel, ASTM oil, hydraulic fluid, cold cleansing agents,
deionized water complying with VG 95 218 Part 2
S Resistance to ozone complying with DIN VDE 0472 Part 805, test type B
S Burning behavior complying with DIN VDE 0472 Part 804, test type C
S Corrosivity of combustion gases complying with DIN VDE 0472 Part 813
(corresponds to IEC 60754-2)
S Ship-building approvals (Germanischer Lloyd, Lloyd’s Register, Registro Italiano
Navale)
