Siemens SIMATIC NET PROFIBUS User Manual

Passive Components for PROFIBUS-PA
6-3
PROFIBUS Networks SIMATIC NET
6GK1970-5CA20-0AA1 Release 2 05/2000
6.2 SpliTConnect Tap
Uses
The SpliTConnect tap allows a PROFIBUS-PA bus segment complying with IEC
61158-2 to be implemented with DTE attachment points. Using the SpliTConnect
coupler, it is possible to cascade SpliTConnect Taps to create a PROFIBUS-PA
distributor. By replacing the contact screw with the SpliTConnect terminator, the
SpliTConnect tap can be used as a bus terminating resistor.

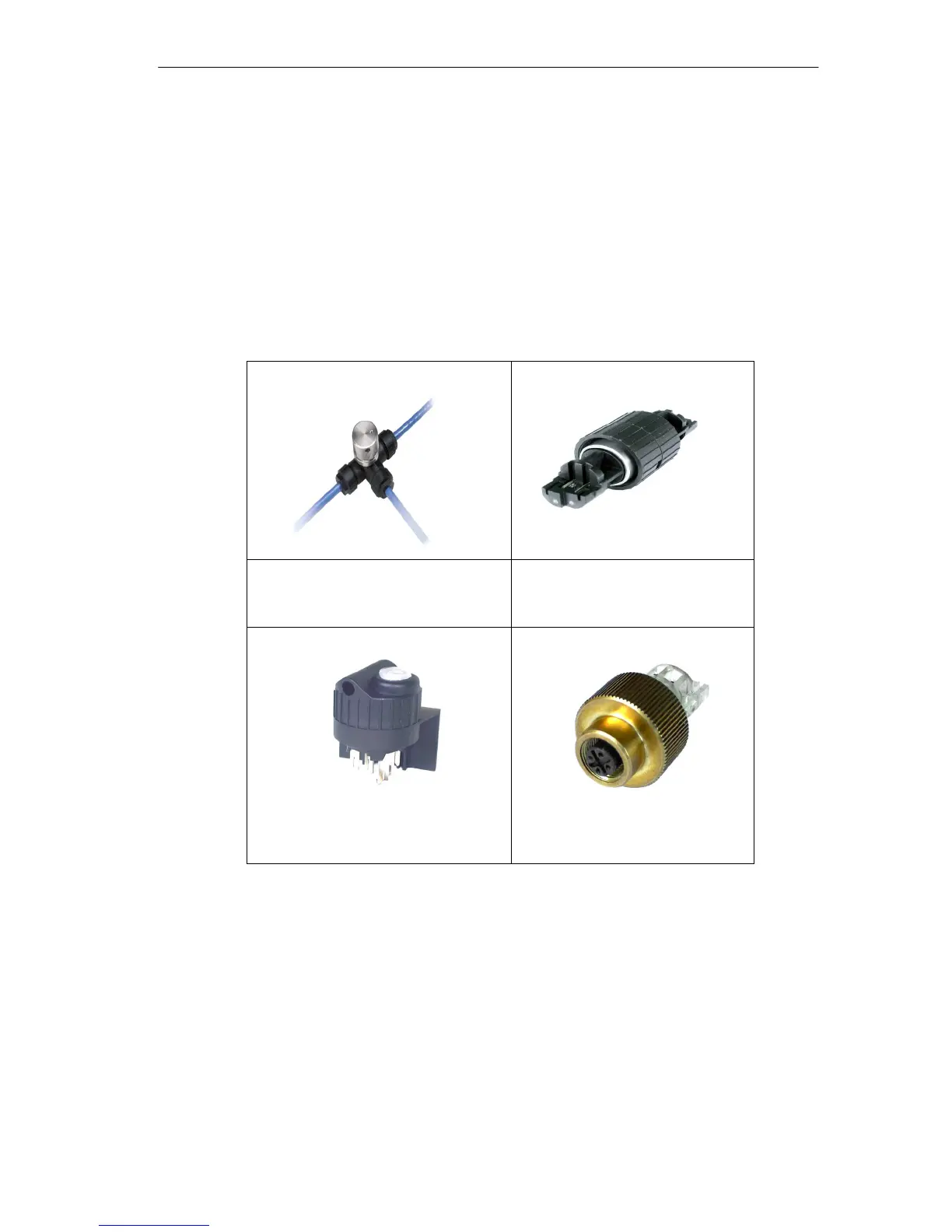

Figure 6-2 PROFIBUS SpliTConnect
Tap
Figure 6-3 SpliTConnect Coupler
Figure 6-4 SpliTConnect Terminator Figure 6-5 SpliTConnect M12
Outlet
Design
The SpliTConnect tap has a sturdy plastic casing of PBT
(polybuthylene–terephthalate) complying with IP67 and is suitable for mounting on
a rail or wall. The integrated metal casing ensures complete shielding. In
conjunction with the FastConnect LAN cable for IEC 61158-2, the SpliTConnect
tap represents a simple cable attachment that can be installed quickly.
FastConnect LAN cables for IEC 61158-2 are contacted and connected using
insulation displacement terminals with contact screws. It is also possible to ground
the SpliTConnect tap using the contact screw.
