Passive Components for Electrical Networks
7-21
PROFIBUS Networks SIMATIC NET
6GK1970-5CA20-0AA1 Release 2 05/2000
!
Warning
During installation and operation, all the mechanical restrictions involving the cable
such as bending radii, tensile load etc. must be adhered to. If these limits are
exceeded, permanent deterioration of the transmission characteristics may result
that can cause temporary or permanent failure of data transmission.

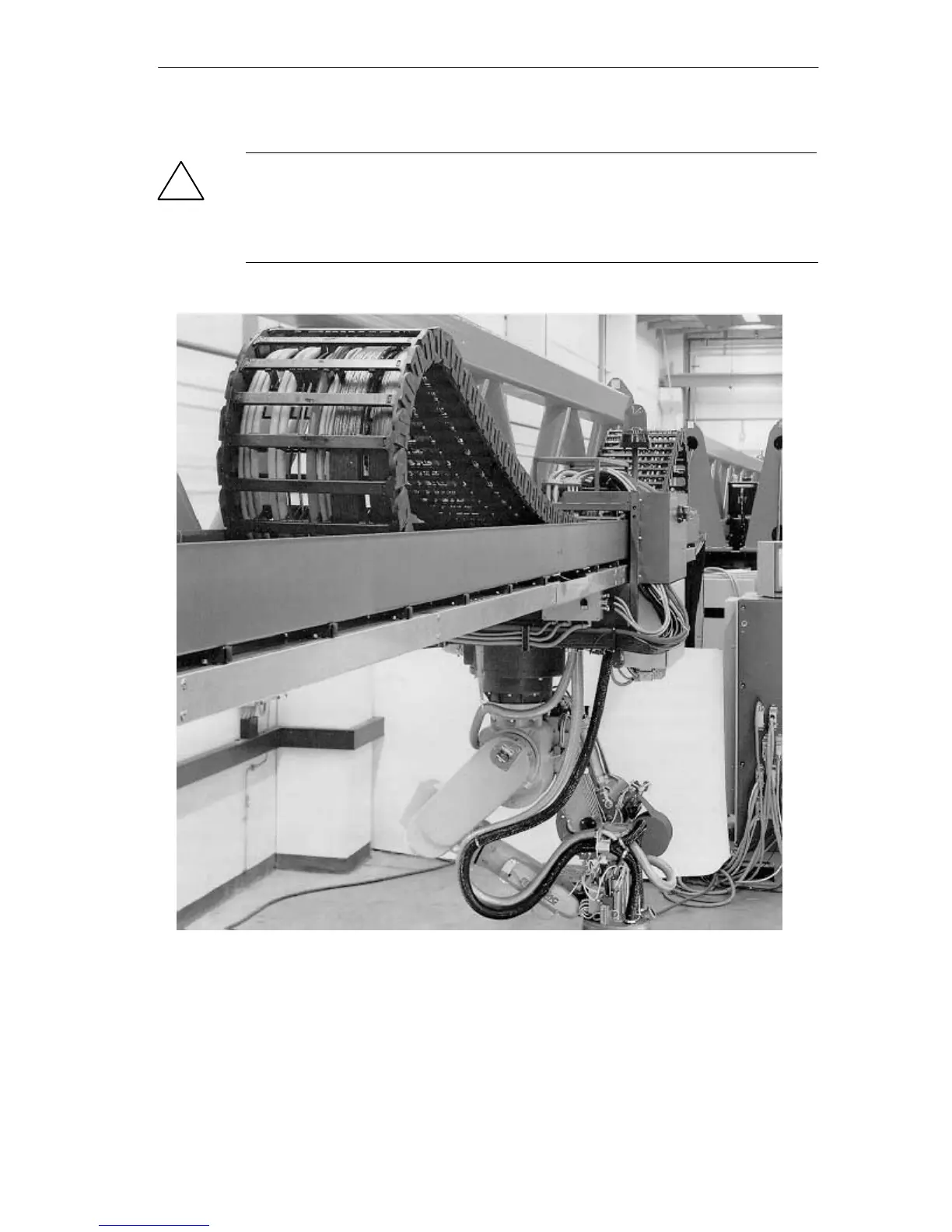

Figure 7-7 Example of Using the Glass Fiber-Optic Trailing Cable in a Drag Chain
