Siemens SIMATIC NET PROFIBUS User Manual

Passive Components for Electrical Networks
7-27
PROFIBUS Networks SIMATIC NET
6GK1970-5CA20-0AA1 Release 2 05/2000
Design
For a fiber-optic attachment, two simplex connectors (transmitter and receiver)
and, if necessary, also an adapter with the following characteristics are required:
S Degree of protection IP 20
S Transmission rates from 9.6 Kbps to 12 Mbps
Transmitter
Receiver
Fiber-Optic
Cables
Adapter
Simplex
Connectors

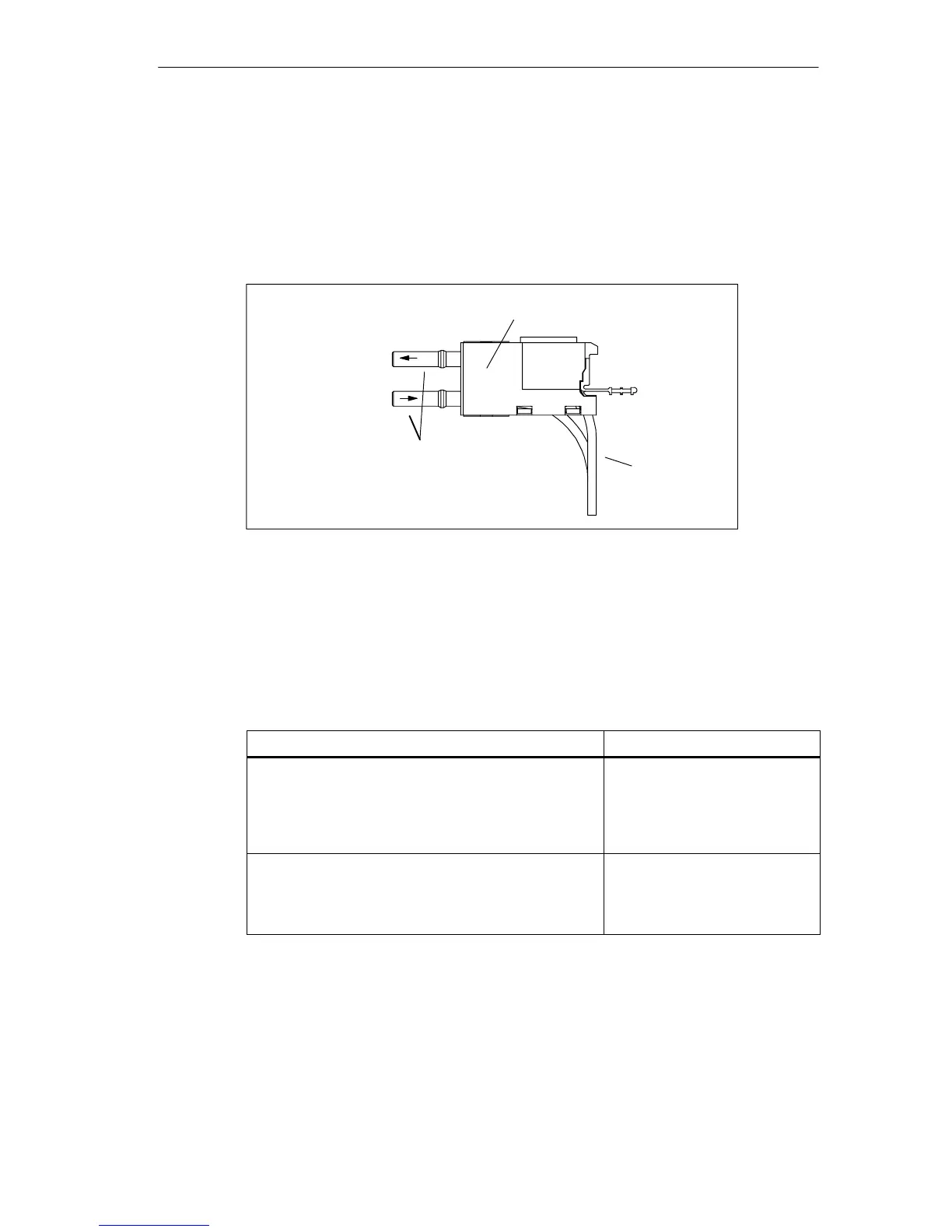

Figure 7-9 Simplex Connector and Special Adapter Fitted Together
Order Numbers
The simplex connector and adapter can be ordered as follows:
Table 7-6 Order Numbers - Simplex Connector and Adapter
Accessories
Order number
SIMATIC NET PROFIBUS plastic fiber-optic cable,
simplex connector/polishing kit
100 simplex connectors and 5 polishing kits for
assembling SIMATIC NET PROFIBUS plastic fiber-optic
cables
6GK1901-0FB00-0AA0
Adapter
Pack of fifty for assembling the simplex connectors in
conjunction with the IM 467 FO, CP 342-5 FO and the
IM 153-2 FO
6ES7195-1BE00-0XA0
