Infrared Link Modul (ILM)6ZB5530–3AC30–0BA1
9
Copyright by Siemens
SIEMENS PROFIBUS ILM

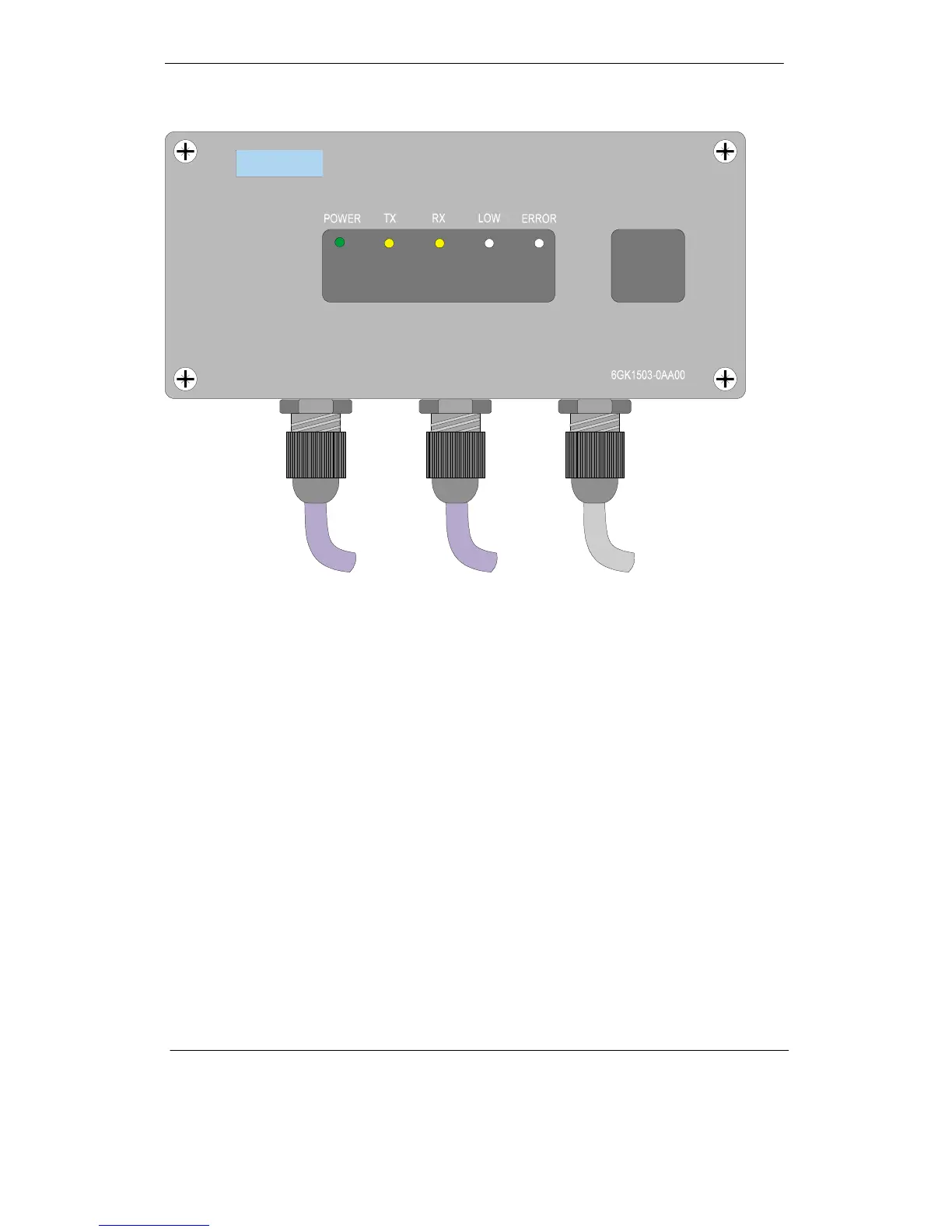

Figure 1: PROFIBUS ILM
The mechanical construction is a compact, stable metal housing (splash-water protected) with degree of
protection IP65. The casing must be mounted by the user on a grounded surface with two screws. When
shipped, the data rate is set to 1.5 Mbps, the signaling contact is not activated if errors occur and the
terminating resistor is not activated.
