Configuring Networks
3-32
PROFIBUS Networks SIMATIC NET
6GK1970-5CA20-0AA1 Release 2 05/2000
Note
Since the formula includes the delays of all fiber-optic and RS-485 cables, the
“Consider Cable Configuration” check box must not be activated in the “Cables”
tab on the “Options” dialog.

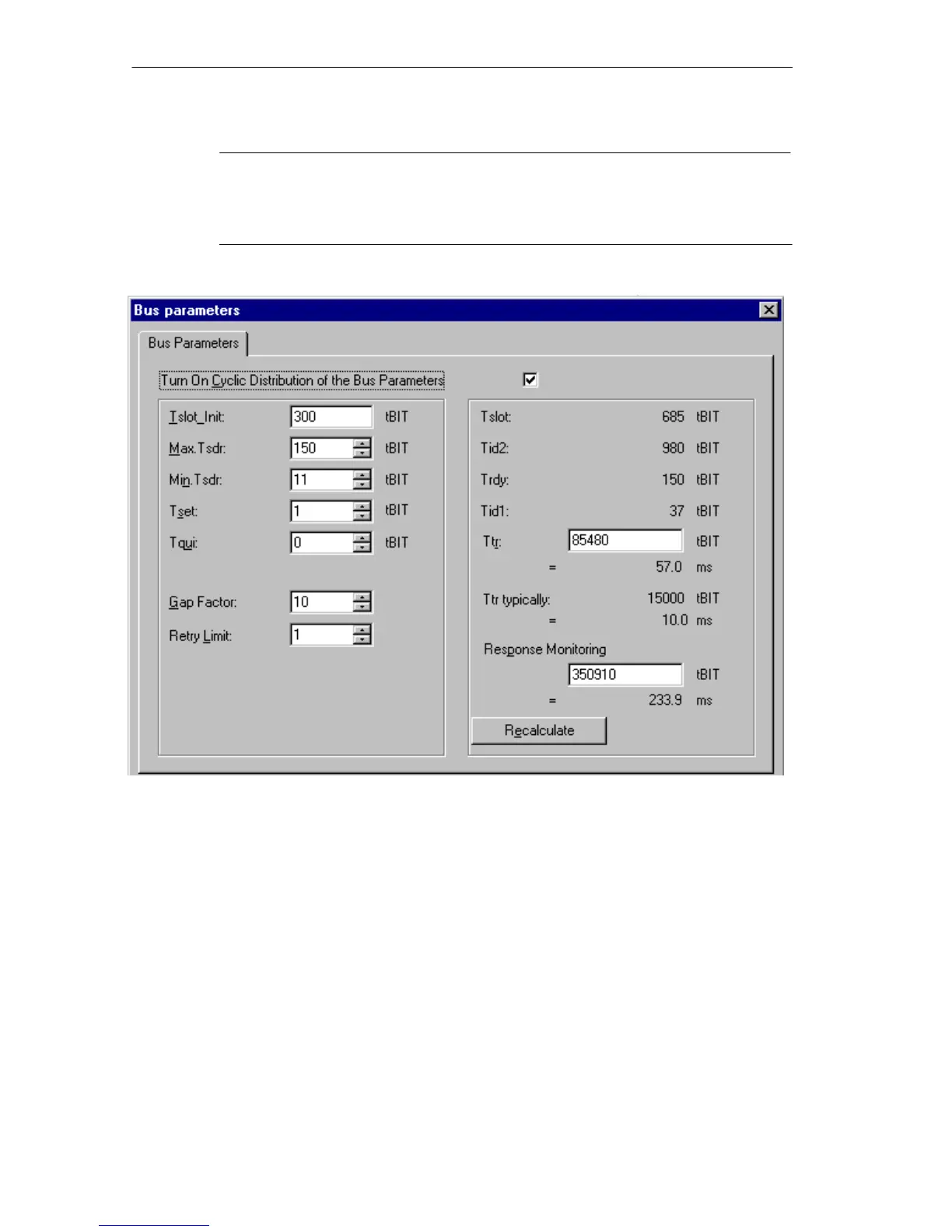

Figure 3-7 “Bus Parameters/User-Defined” Dialog in STEP 7 (V5.0)
