Siemens Simatic S7-300 - Front View of the Interface Module IM 360

Interface Modules
6-4
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
Front View

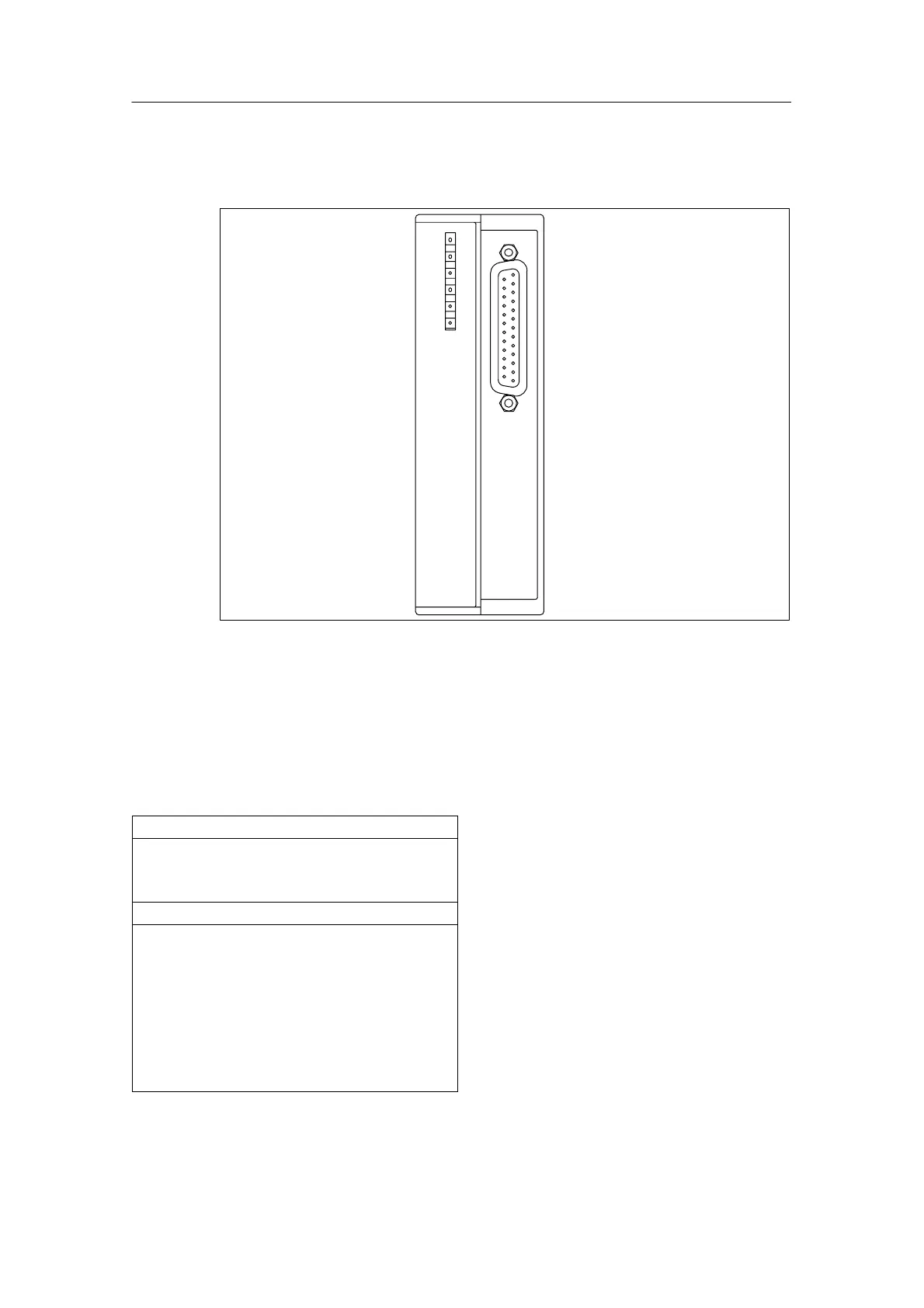

Figure 6-1 shows the front view of the interface module IM 360.
Front View
OUT
SF
X1
Figure 6-1 Front View of the Interface Module IM 360
Technical specification
The following overview lists the technical specifications for the interface module
IM 360.
Dimensions and Weight
Dimensions W x H x D
(in millimeters)
40 x 125 x 120
Weight Approx. 250 g
Data for Specific Module
Length of cable
• Maximum length to
next IM
10 m
Current consumption
• From the backplane
bus
350 mA
Power loss typ. 2 W
Status and fault LEDs Yes
