Terminal assignment and block diagram of the SM 321; DI 32 x 24 VDC
Channel
number
Status display – green
Backplane bus
interface
24V
24V

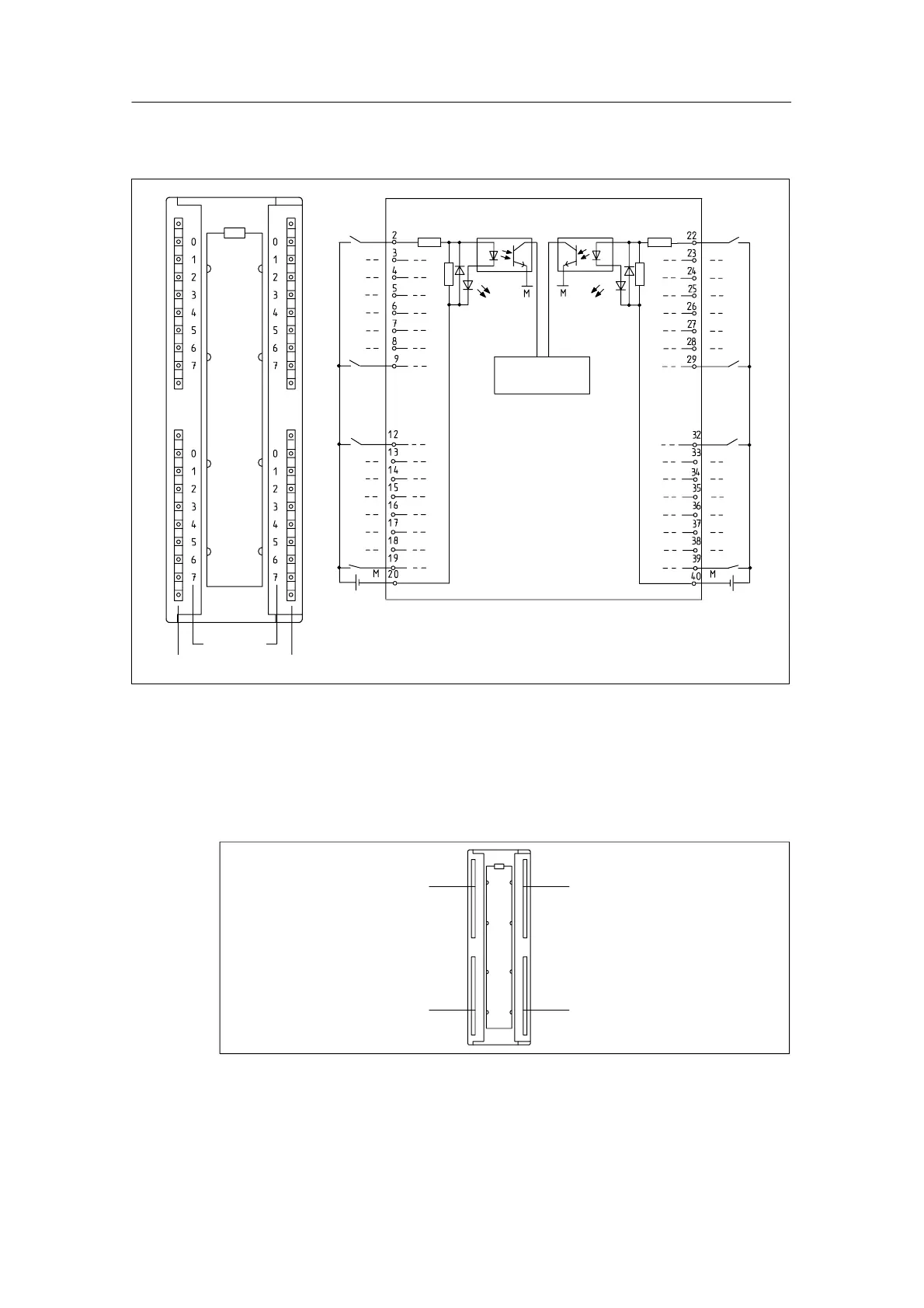

Figure 3-1 Module View and Block Diagram of the Digital Input Module SM 321; DI 32 x 24 VDC
Terminal assignment of the SM 321; DI 32 x 24 VDC
The following figure shows the assignment of the channels to the addresses.
Input byte x
Input byte (x+1)
Input byte (x+2)
Input byte (x+3)
Figure 3-2 Terminal assignment of the SM 321; DI 32 x 24 VDC
