Digital modules

3.12 Digital input module SM 321; DI 16 x DC 24/125 V; with hardware and diagnostic interrupts (6ES7321-

7EH00-0AB0)

S7-300 Module data

102 Manual, 06/2017, A5E00105505-AJ

Interrupt-triggering channels

The relevant hardware interrupt-triggering channel is logged in the OB40_POINT_ADDR

variable of the start information of OB40. The figure shows the bit assignments of DWORD 8

in the local data.

Byte

Variable

Data type

Description

6/7

OB40_MDL_ADDR

WORD

B#16#0

Address of the interrupt-triggering module

starting

at 8

OB40_POINT_ADDR DWORD see the figure

below

Indication of the interrupt-triggering inputs

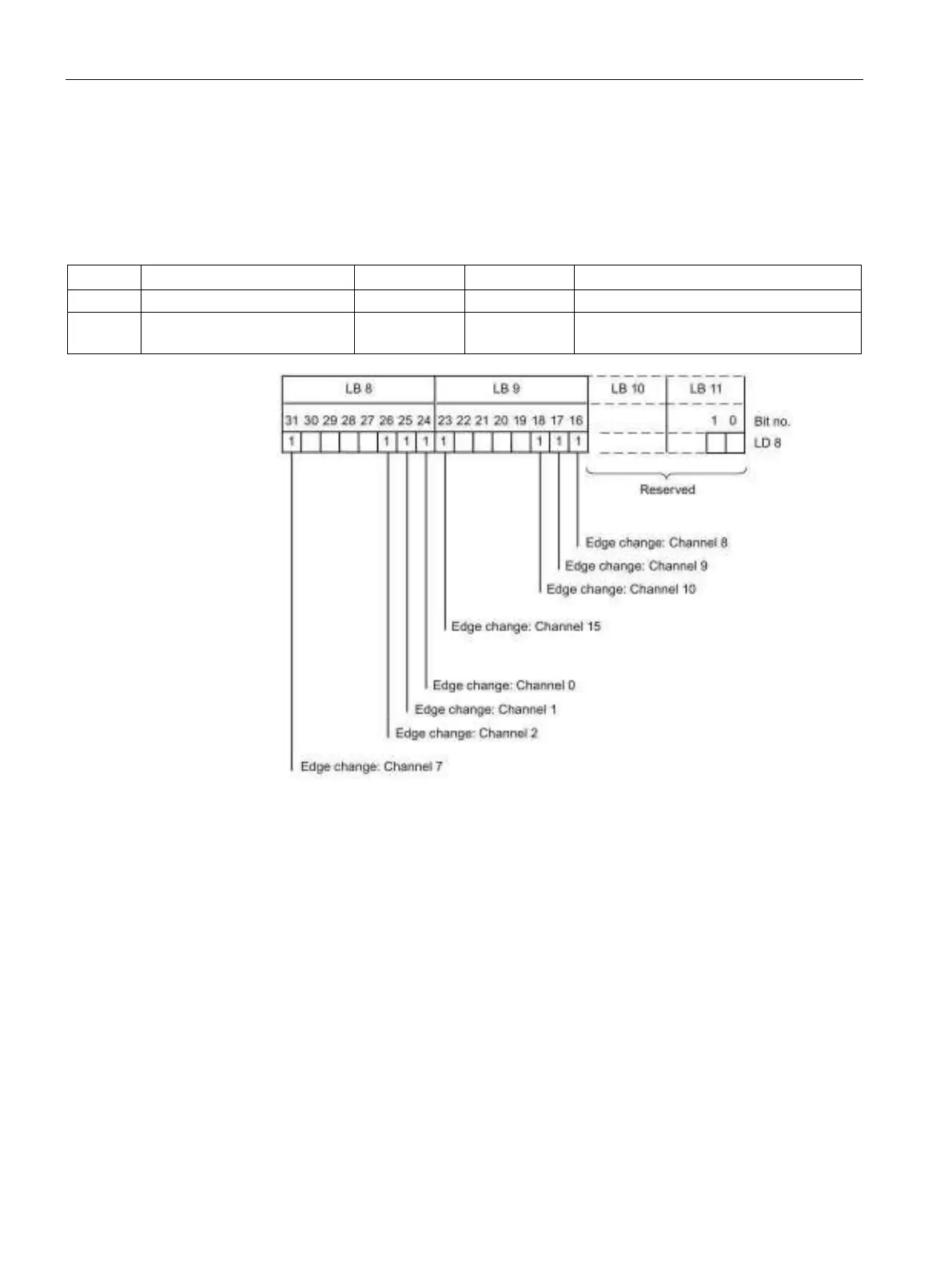

Figure 3-8 Start Information of OB40: which event has triggered the hardware interrupt
