Siemens SIMATIC - Power Supply Module PS 307; 5 A; (6 AG1307-1 EA80-2 AA0)

Power supply modules
2.5 Power supply module PS 307; 5 A; (6AG1307-1EA80-2AA0)
S7-300 Module data
Manual, 06/2017, A5E00105505-AJ
45
2.5 Power supply module PS 307; 5 A; (6AG1307-1EA80-2AA0)
Order number "SIPLUS S7 module"
6AG1307-1EA80-2AA0
Properties
Properties of the PS 307; 5 A power supply module:
● Output current 5 A
● Output voltage 24 V DC; short circuit-proof, open circuit-proof
● Connection to singlephase AC mains
(rated input voltage 120/230 V AC, 50/60 Hz)
● safe electrical isolation in accordance with EN 60 950 (SELV)
● May be used as load power supply

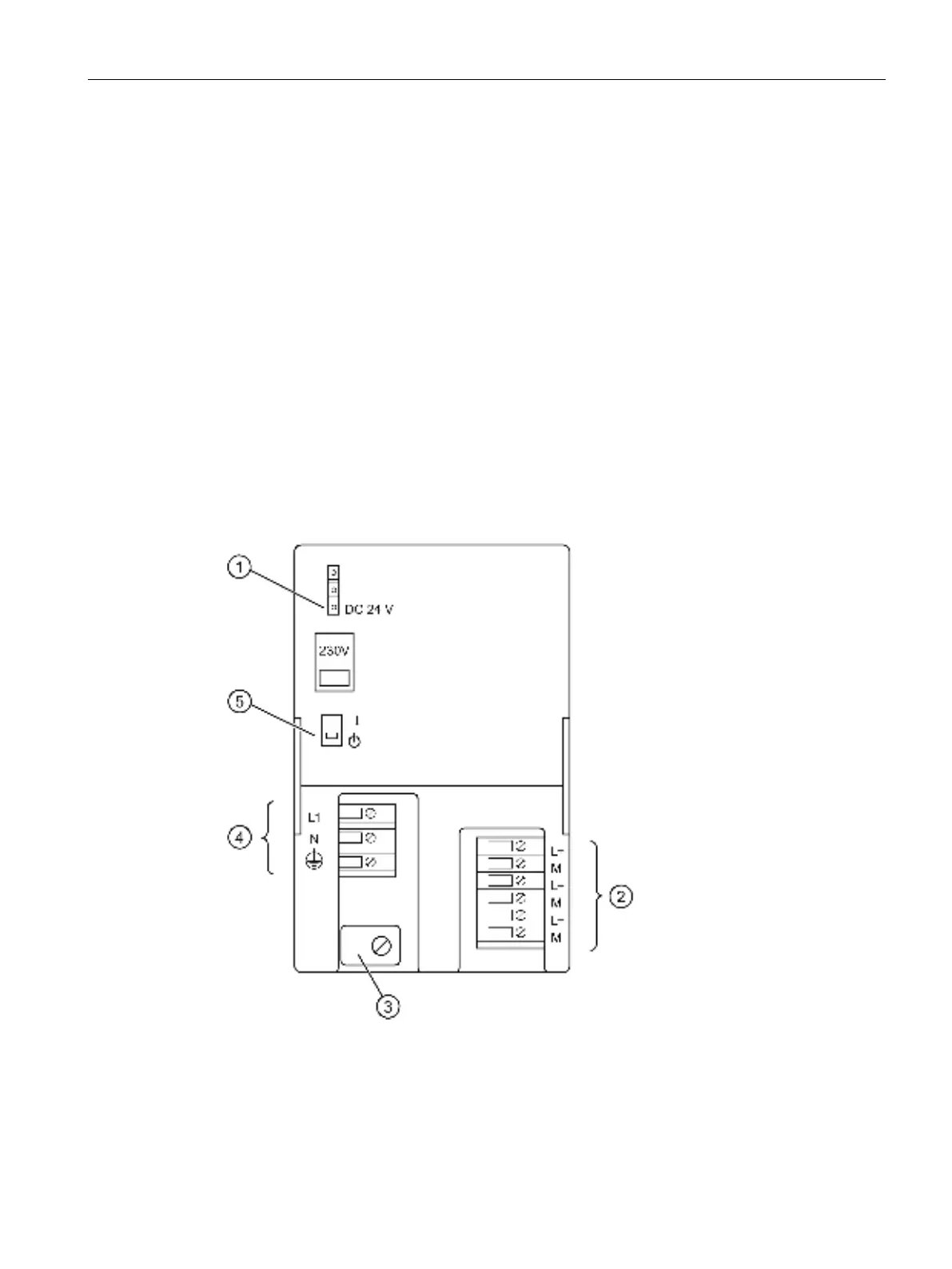

Wiring diagram of PS 307; 5 A
①
"24 V DC output voltage present" display
②
Terminals for 24 V DC output voltage
③
Strain relief
④
Mains and protective conductor terminals
⑤
24 V DC On/Off switch
⑥
Mains selector switch
