Dimensional drawings

C.1 Dimensional drawings of the mounting rails

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

605

C.1.1 Bus modules

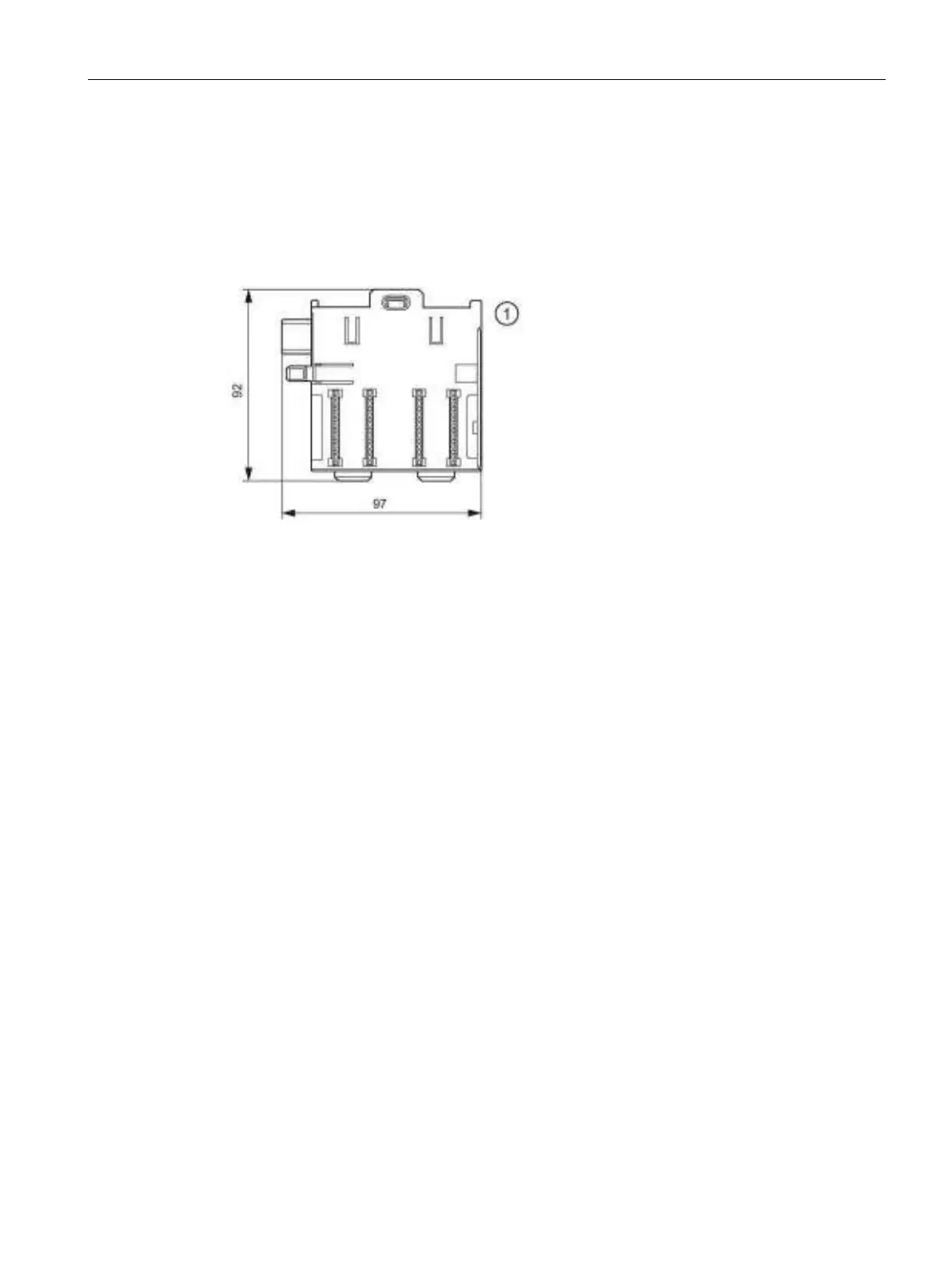

The figure below shows the dimension drawing of the active bus module for the "Insertion

and Removal" function.

①

Bus modules

BM PS/IM (...7HA)

BM IM/IM (...7HD)

BM 2 x 40 (...7HB)

BM 1 x 80 (...7HC)
