2.4 Power supply module PS 305; 2 A; (6AG1305-1BA80-2AA0)
S7-300 Module data
42 Manual, 06/2017, A5E00105505-AJ
2.4 Power supply module PS 305; 2 A; (6AG1305-1BA80-2AA0)
Order number "SIPLUS S7-300 module"
6AG1305-1BA80-2AA0
Properties
Properties of the PS 305 power supply module (2 A):
● Output current 2 A
● Output voltage 24 V DC; short circuit-proof, open circuit-proof
● Connection to DC power supply
(rated input voltage 24/48/72/96/110 V DC)
● safe electrical isolation in accordance with EN 60 950 (SELV)
● May be used as load power supply

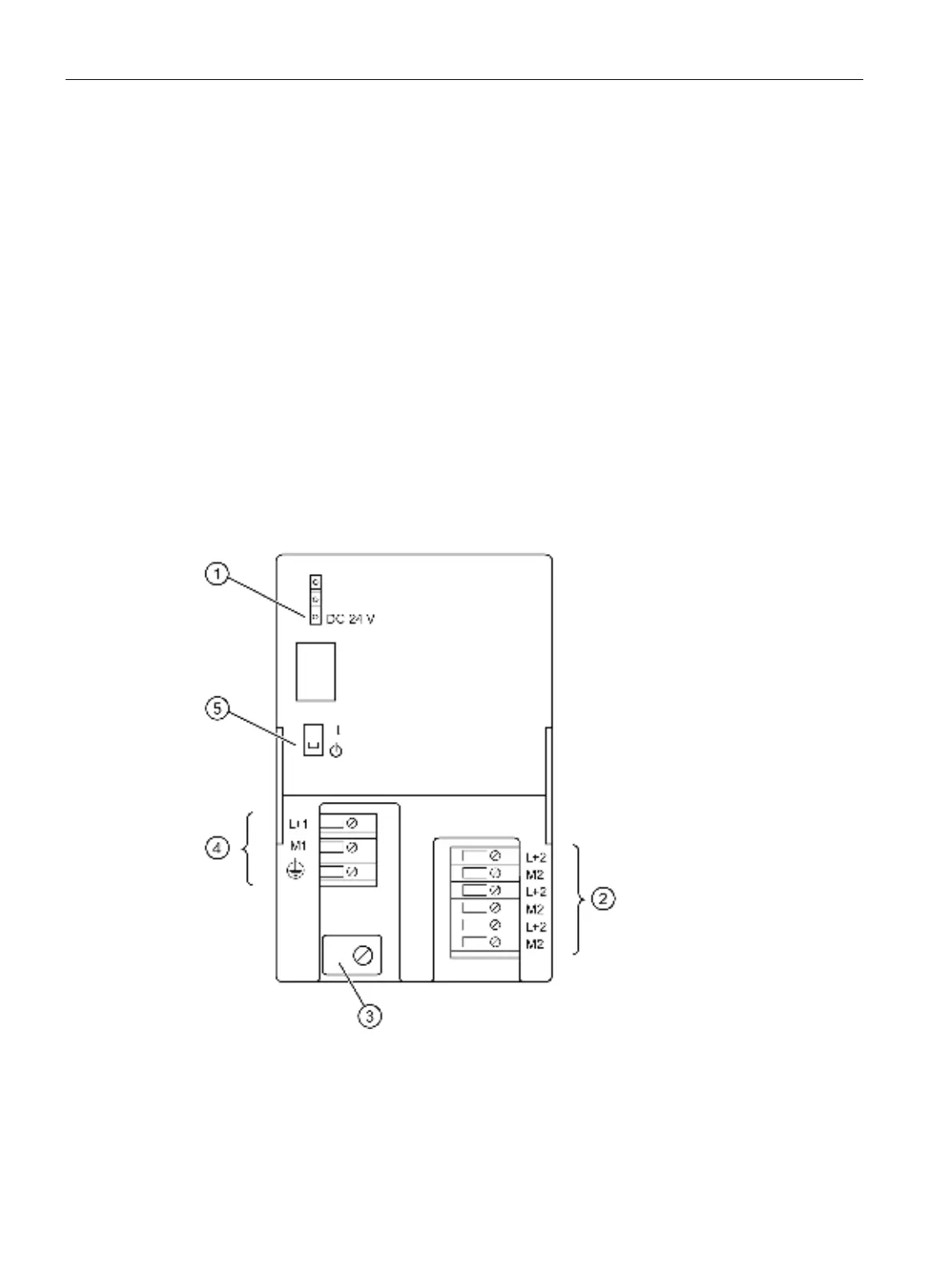

Wiring diagram of PS 305; 2 A
①
"24 V DC output voltage present" display
②
Terminals for 24 V DC output voltage
③
Strain relief
④
Mains and protective conductor terminals
⑤
24 V DC On/Off switch
