2.3 Power supply module PS 307; 10 A; (6ES7307-1KA02-0AA0)
S7-300 Module data
Manual, 06/2017, A5E00105505-AJ
39
2.3 Power supply module PS 307; 10 A; (6ES7307-1KA02-0AA0)
Order number
6ES7307-1KA02-0AA0
Properties
Properties of the PS 307; 10 A power supply module:
● Output current 10 A
● Output voltage 24 V DC; short circuit-proof, open circuit-proof
● Connection to singlephase AC mains
(rated input voltage 120/230 V AC, 50/60 Hz)
● safe electrical isolation in accordance with EN 60 950 (SELV)
● May be used as load power supply

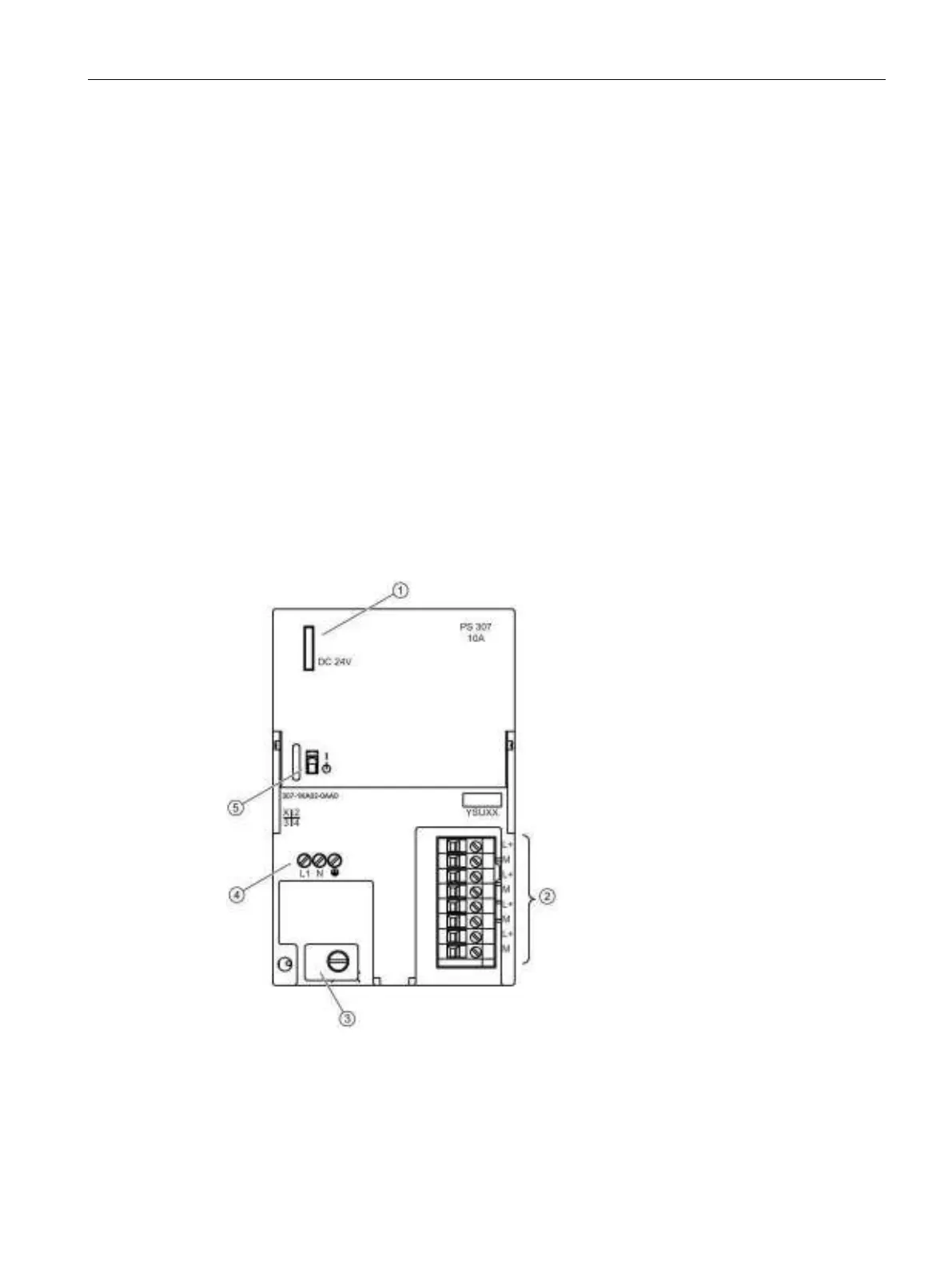

Block diagram of PS 307; 10 A
①
Display for "Output voltage DC 24 V present"
②
Terminals for 24 V DC output voltage
③
Strain-relief
④
Mains and protective conductor terminals
⑤
24 V DC On/Off switch
