2.2 Power supply module PS 307; 5 A; (6ES7307-1EA01-0AA0)
S7-300 Module data
36 Manual, 06/2017, A5E00105505-AJ
2.2 Power supply module PS 307; 5 A; (6ES7307-1EA01-0AA0)
Order number
6ES7307-1EA01-0AA0
Properties
Properties of the PS 307; 5 A power supply module:
● Output current 5 A
● Output voltage 24 V DC; short circuit-proof, open circuit-proof
● Connection to singlephase AC mains
(rated input voltage 120/230 V AC, 50/60 Hz)
● safe electrical isolation in accordance with EN 60 950 (SELV)
● May be used as load power supply

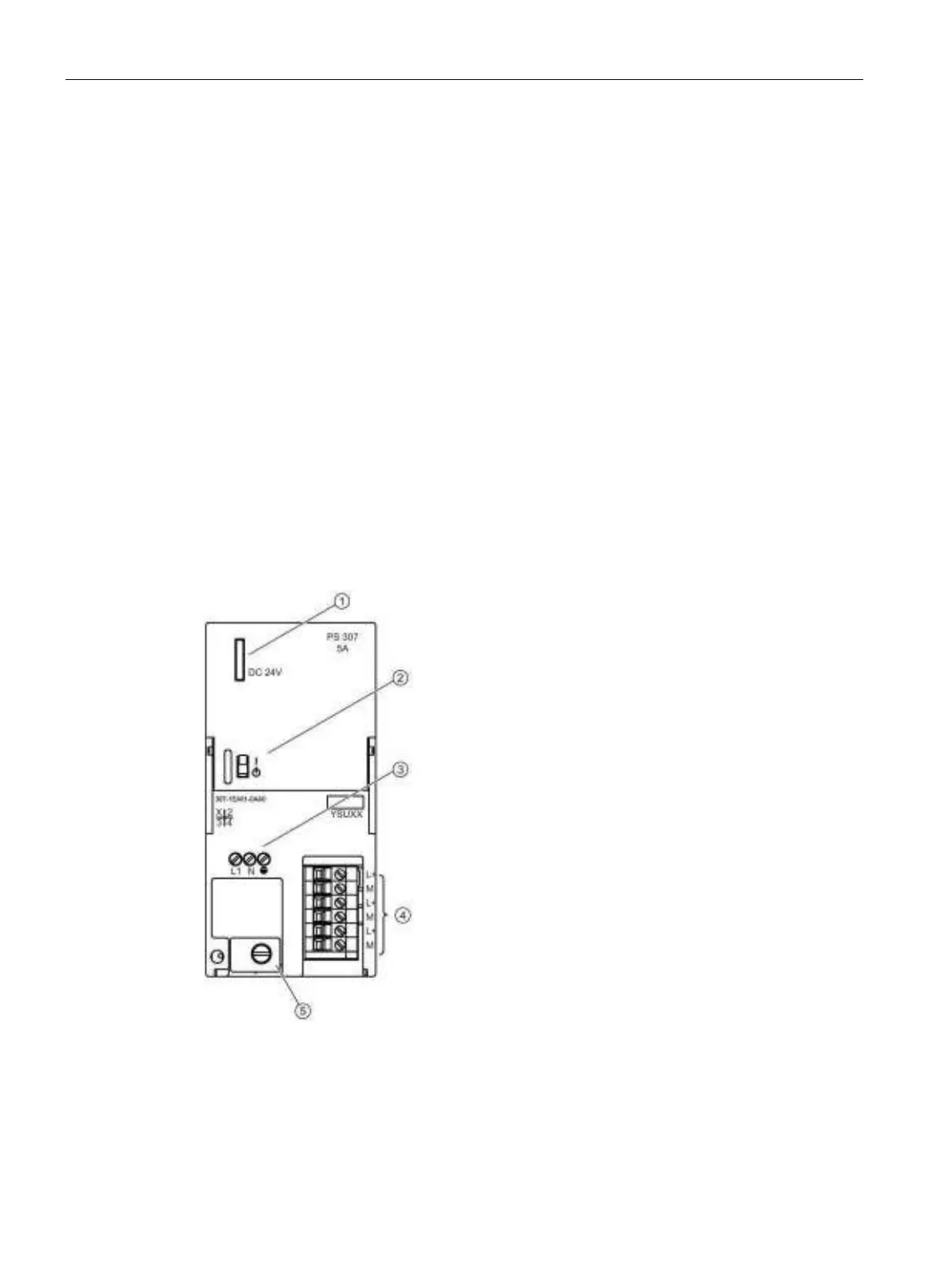

Wiring diagram of PS 307; 5 A
①
Display for "Output voltage DC 24 V present"
②
24 V DC On/Off switch
③
Mains and protective conductor terminals
④
Terminals for 24 V DC output voltage
⑤
Strain-relief
