Dimensional drawings

C.1 Dimensional drawings of the mounting rails

S7-300 Module data

604 Manual, 06/2017, A5E00105505-AJ

Mounting rail for the "Insertion and Removal" function

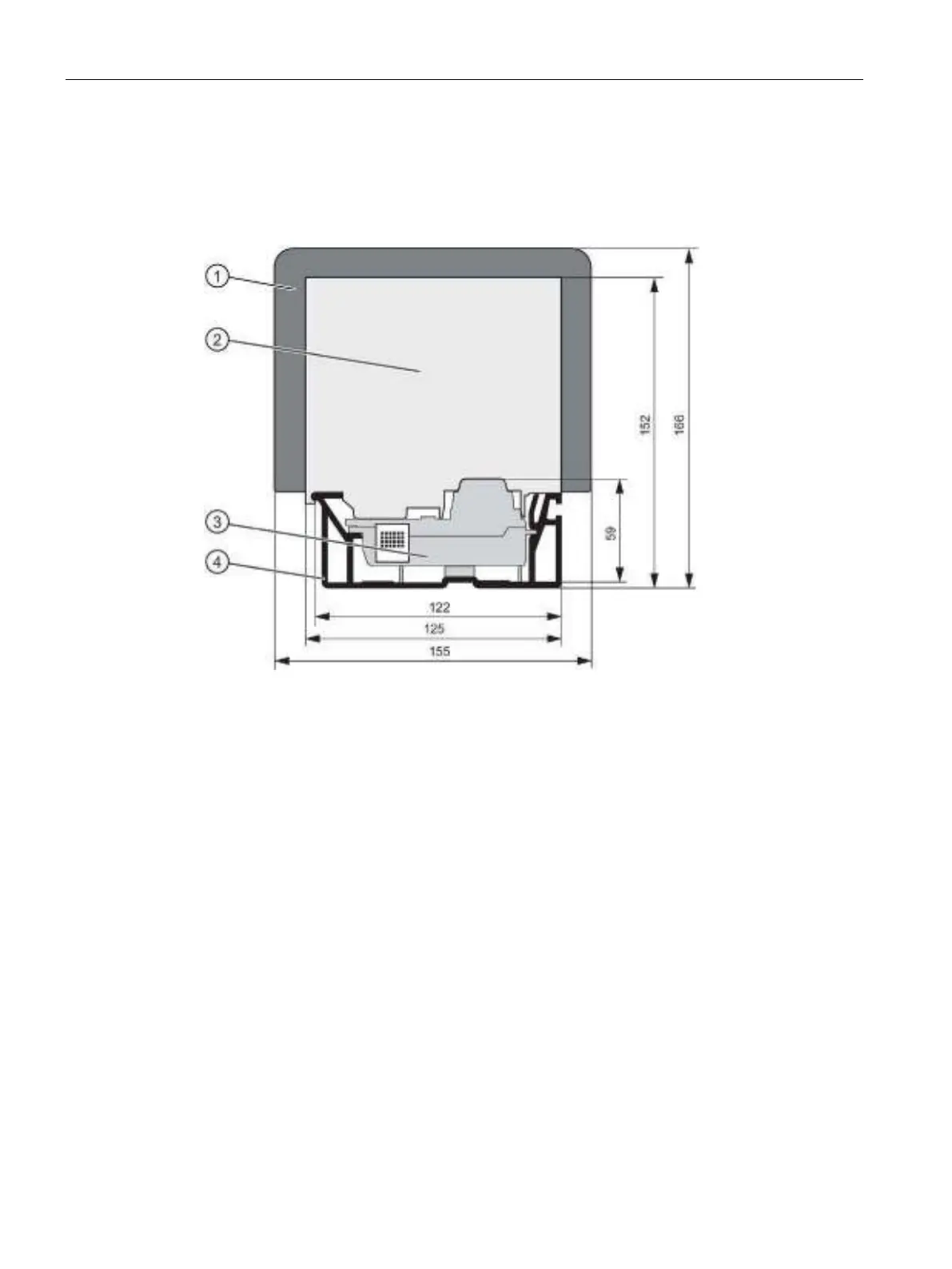

The figure below shows the dimensional drawing of the mounting rail for the "Insertion and

Removal" function with active bus module, S7-300 module and explosion-proof partition. The

mounting rail has a length of 482.6 mm or 530 mm.

①

Explosion-proof partition

②

S7-300 module

③

active bus module

④

Mounting rail for the "Insertion and Removal" function
