Dimensional drawings

C.1 Dimensional drawings of the mounting rails

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

603

Mounting rail 2000 mm

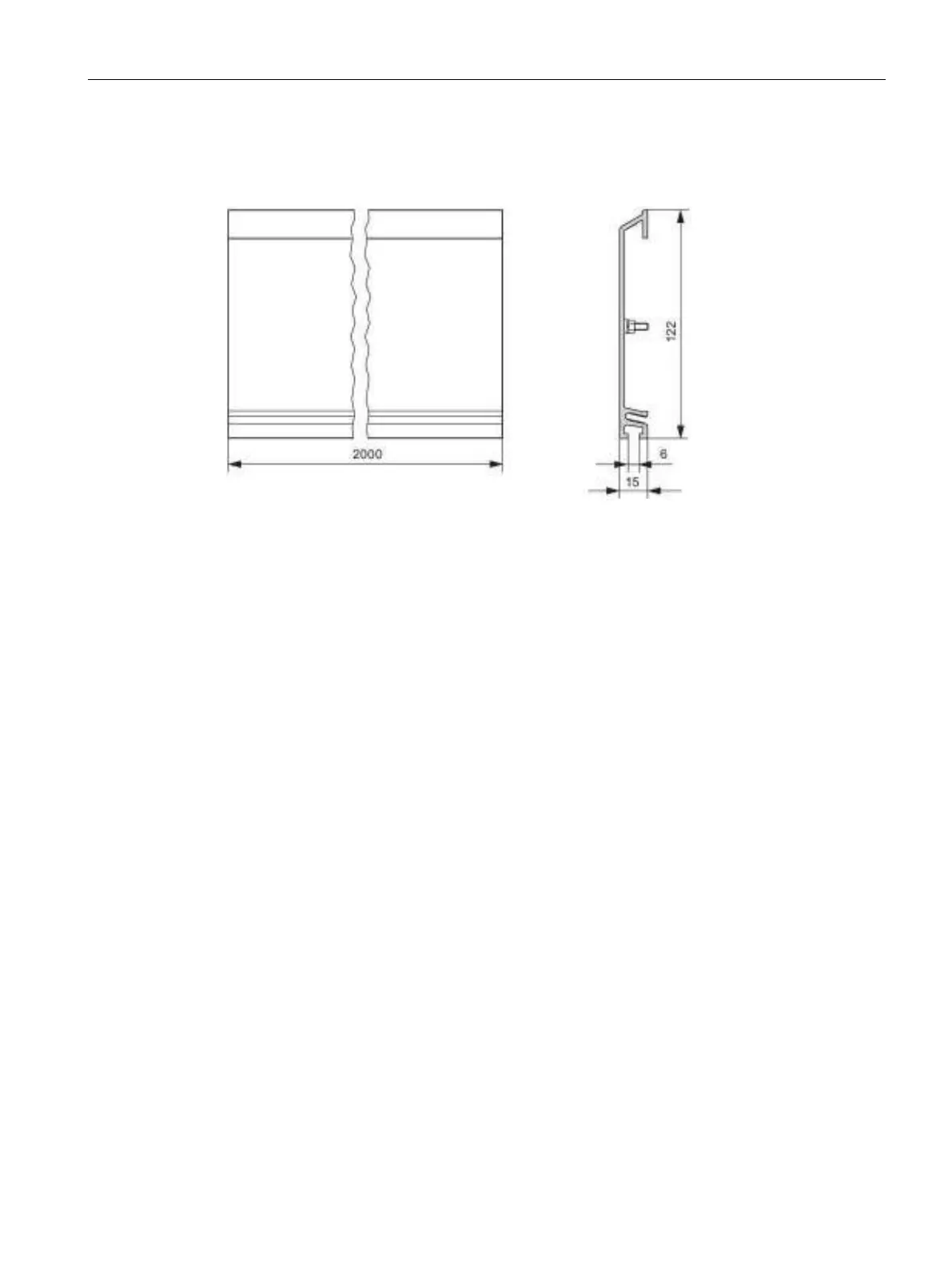

The figure below shows the dimensional drawing of the 2000 mm mounting rail.

Figure C-9 Dimensional drawing of the 2000 mm mounting rail
