Dimensional drawings

C.1 Dimensional drawings of the mounting rails

S7-300 Module data

602 Manual, 06/2017, A5E00105505-AJ

Mounting rail 530 mm

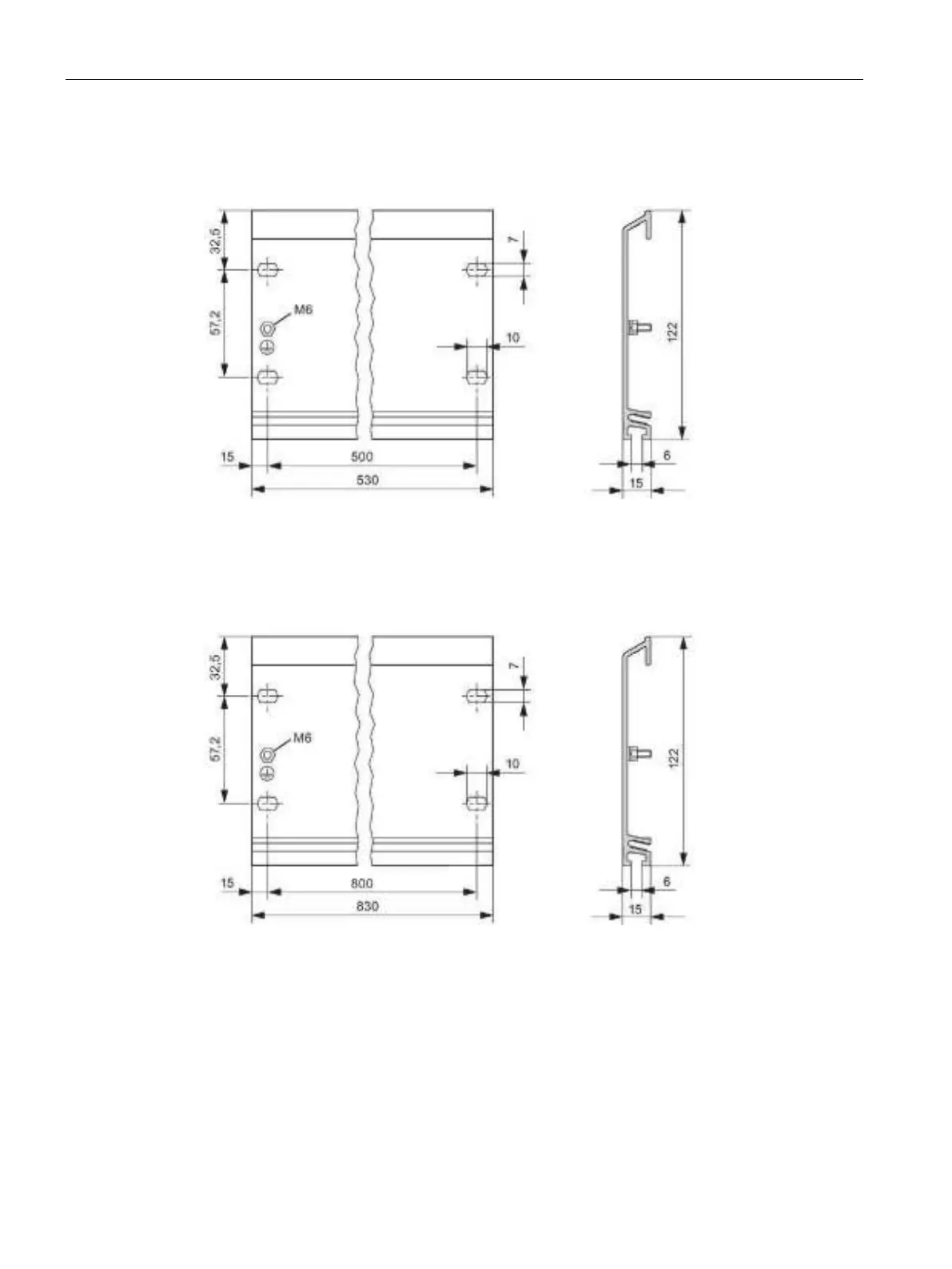

The figure below shows the dimensional drawing of the 530 mm mounting rail.

Figure C-7 Dimensional drawing of the mounting rail with standard width of 530 mm.

Mounting rail 830 mm

The figure below shows the dimensional drawing of the 830 mm mounting rail.

Figure C-8 Dimensional drawing of the mounting rail with standard width of 830 mm.
