Digital modules

3.21 Digital output module SM 322; DO 32 x DC 24 V/ 0.5 A; (6ES7322-1BL00-0AA0)

S7-300 Module data

136 Manual, 06/2017, A5E00105505-AJ

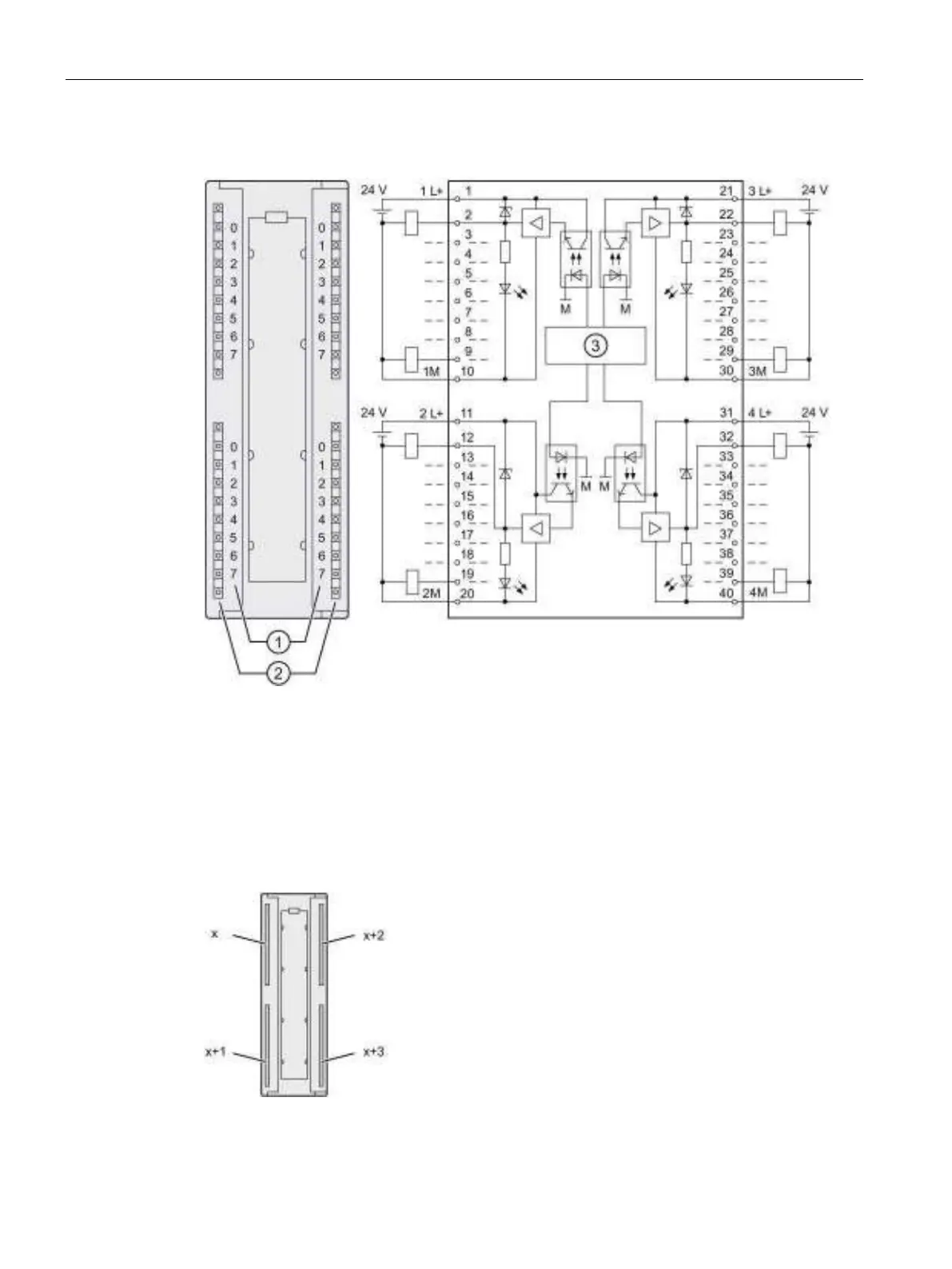

Wiring and block diagram of SM 322; DO 32 x DC 24 V/ 0.5 A

①

Channel number

②

Status display - green

③

Backplane bus interface

Terminal assignment

The figure below shows the channel addressing (output byte x to output byte x+3).
