3.22 Digital output module SM 322; DO 32 x AC 120/230 V/1 A; (6ES7322-1FL00-0AA0)
S7-300 Module data
Manual, 06/2017, A5E00105505-AJ
141
Terminal assignment

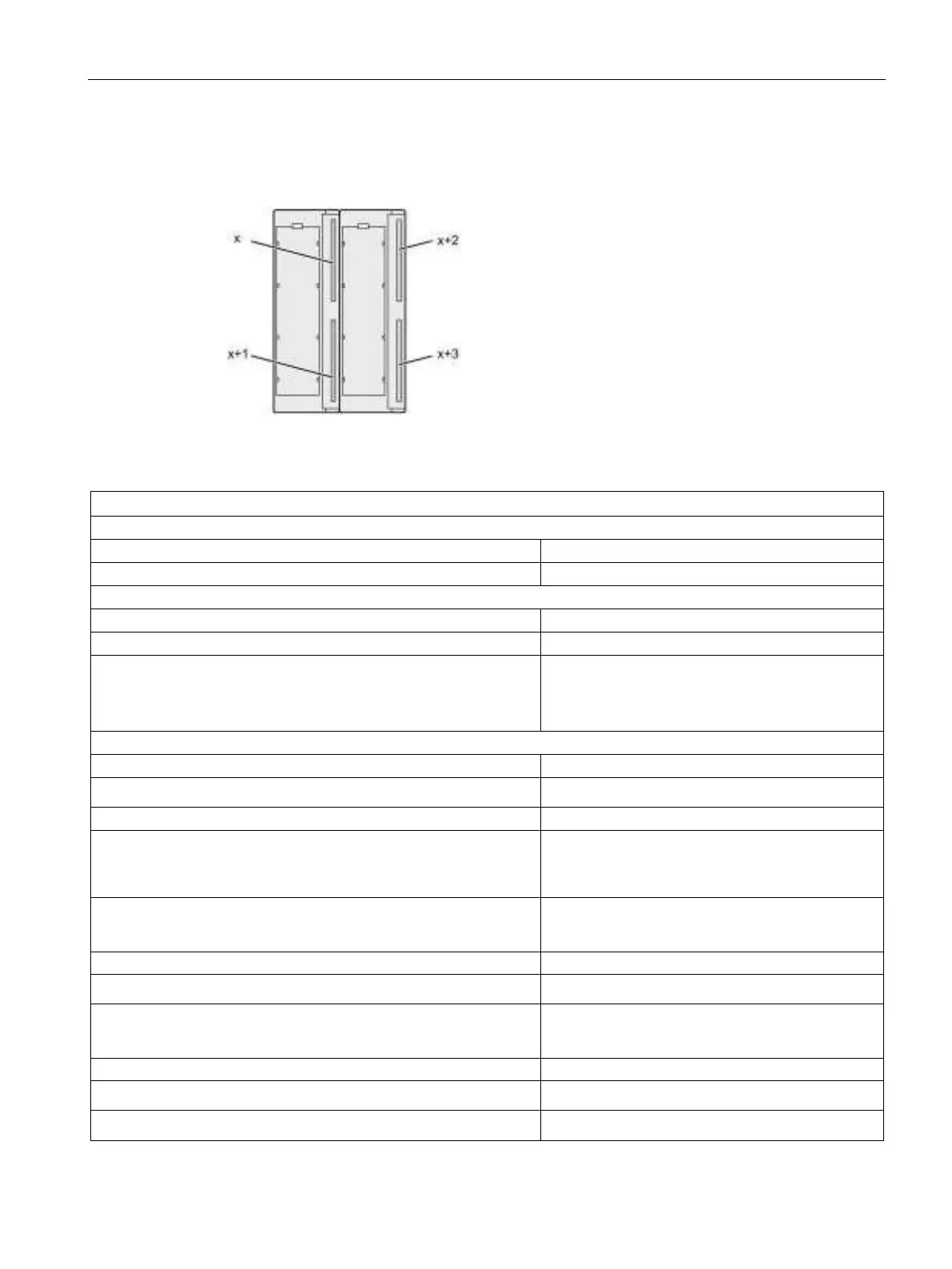

The figure below shows the channel addressing (output byte x to output byte x+3).
SM 322; DO 32 x AC 120/230 V/1 A - Technical specifications
Technical specifications
Dimensions and weight
Dimensions W x H x D (mm)
80 x 125 x 117
Weight
ca. 500 g
Module-specific data
Supports isochronous mode
no
Number of outputs
32
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
Voltages, currents, electrical potentials
Rated load voltage L1
120/230 VAC
• Maximum frequency range
47 Hz to 63 Hz
Total current of outputs (per group)
• horizontal mounting position
to 60 °C
to 40 °C
max. 3 A
max. 4 A
• vertical mounting position
• to 40 °C
max. 4 A
Electrical isolation
• between channels and the backplane bus
yes
• between channels
in groups of
yes
8
Maximum potential difference
• between M
internal
and outputs
250 VAC
• between outputs of different groups
250 VAC
