3.23 Digital output module SM 322; DO 16 x DC 24 V/ 0.5 A; (6ES7322-1BH01-0AA0)

S7-300 Module data

144 Manual, 06/2017, A5E00105505-AJ

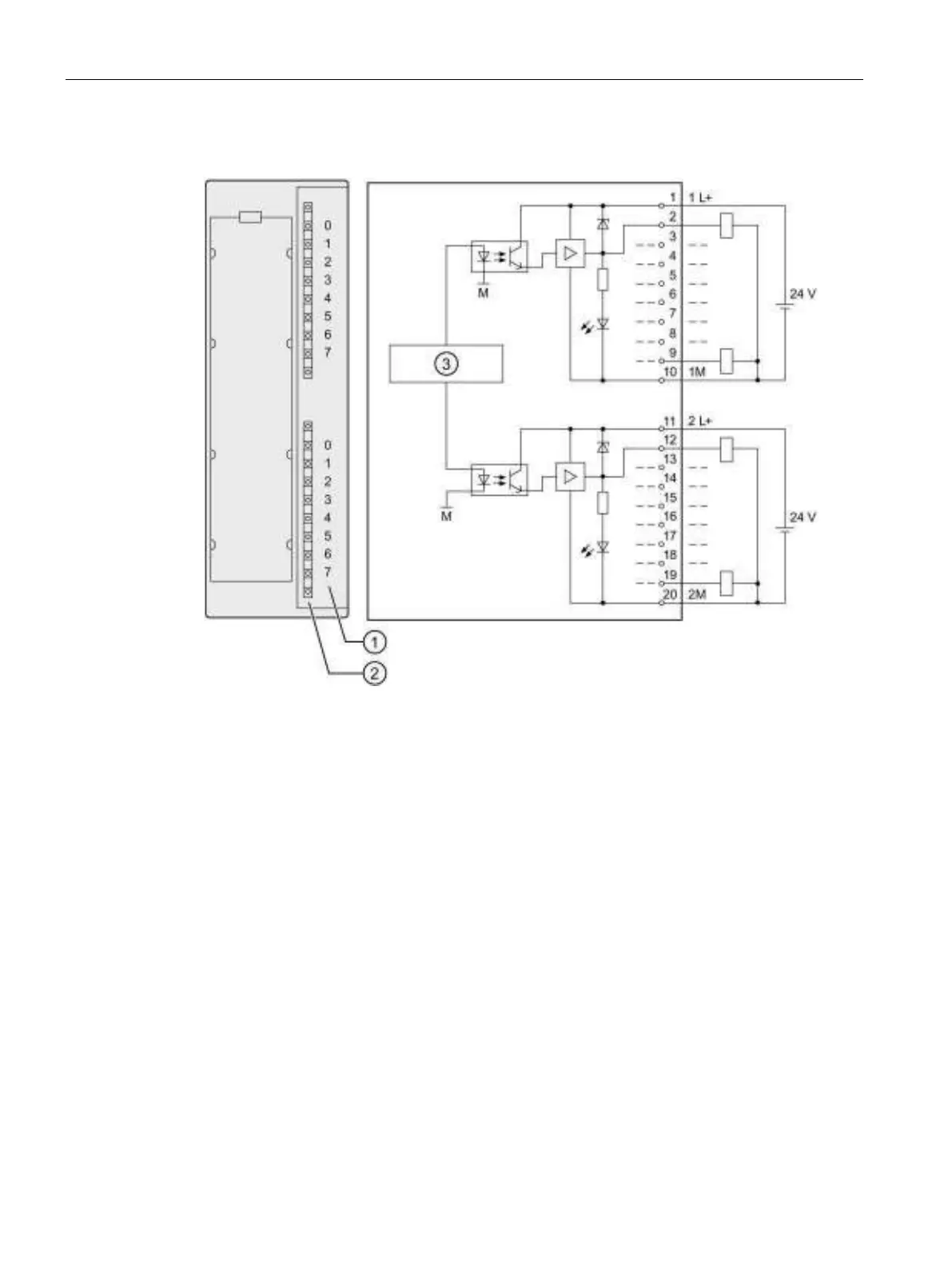

Wiring and block diagram of SM 322; DO 16 x DC 24 V/ 0.5 A

①

Channel number

②

Status display - green

③

Backplane bus interface
