Digital modules

3.28 Digital output module SM 322; DO 8 x DC 24 V/2 A; (6ES7322-1BF01-0AA0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

171

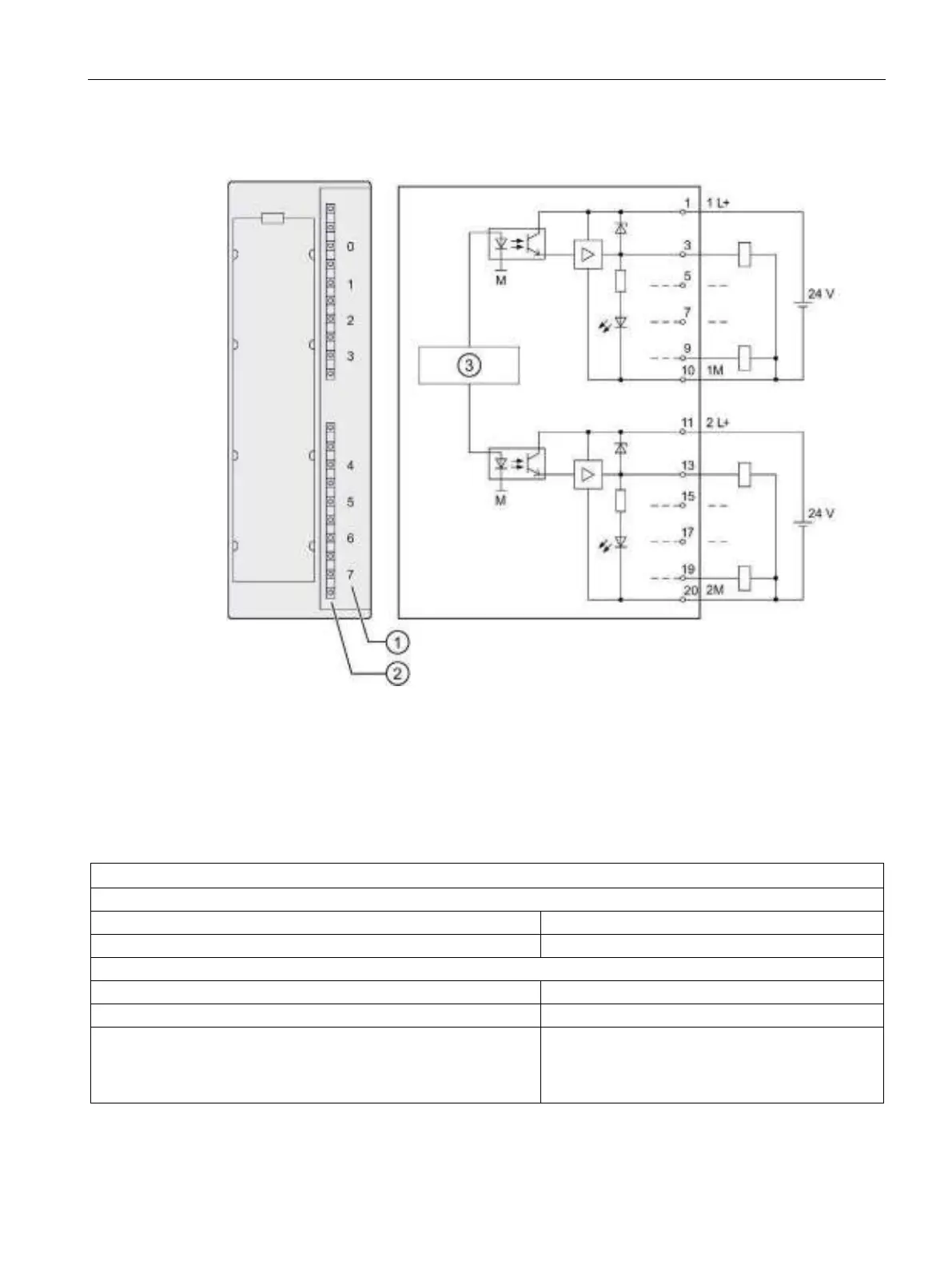

Wiring and block diagram of SM 322; DO 8 x DC 24 V/2 A

①

Channel number

②

Status display - green

③

Backplane bus interface

SM 322; DO 8 x DC 24 V/2 A - Technical specifications

Technical specifications

Dimensions and weight

Dimensions W x H x D (mm)

40 x 125 x 117

Weight

ca. 190 g

Module-specific data

Supports isochronous mode

Number of outputs

Cable length

• unshielded

• shielded

max. 600 m

max. 1000 m
