Digital modules
3.34 Relay output module SM 322; DO 8 x Rel. AC 230 V; (6ES7322-1HF01-0AA0)
S7-300 Module data
204 Manual, 06/2017, A5E00105505-AJ

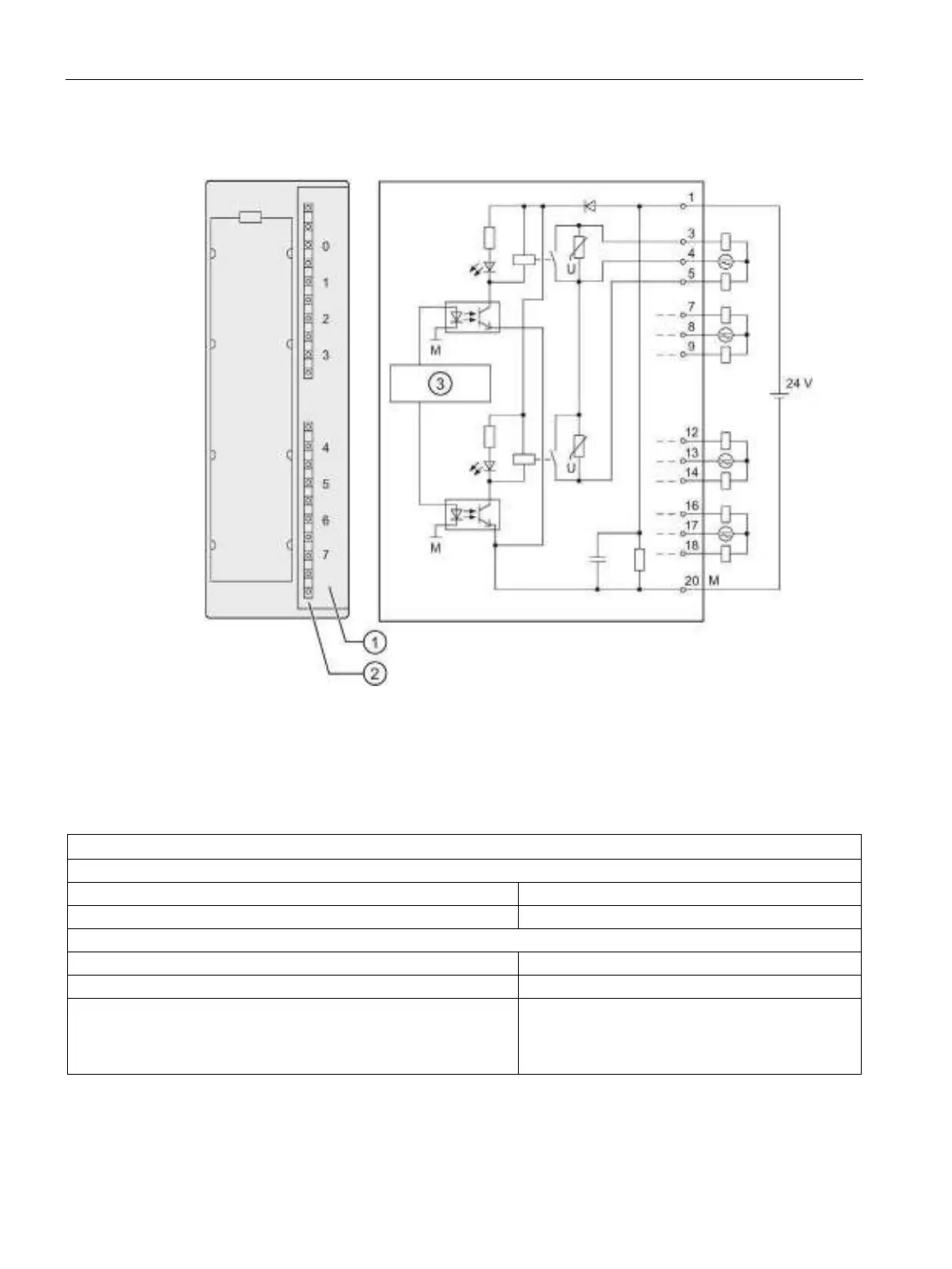

Wiring and block diagram of SM 322; DO 8 x Rel. 230 V AC
①
Channel number
②
Status display - green
③
Backplane bus interface
Technical specifications of the SM 322; DO 8 x Rel. 230 V AC
Technical specifications
Dimensions and weight
Dimensions W x H x D (mm)
40 x 125 x 117
Weight
ca. 190 g
Module-specific data
Supports isochronous mode
no
Number of outputs
8
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
