Digital modules
3.38 Digital IO module SM 323; DI 8/DO 8 x DC 24 V/0.5 A; (6ES7323-1BH01-0AA0)
S7-300 Module data
228 Manual, 06/2017, A5E00105505-AJ

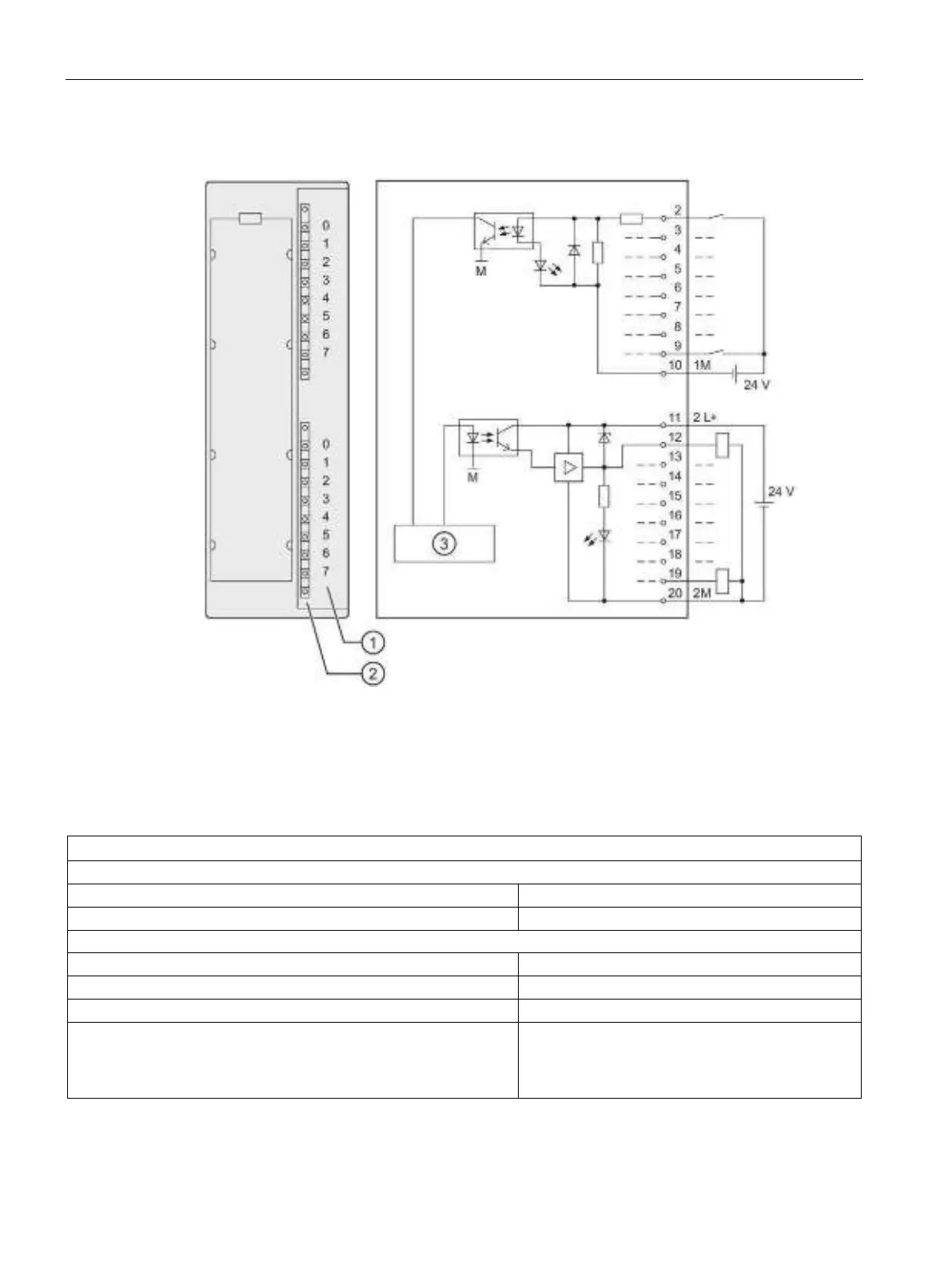

Wiring and block diagram of SM 323; DI 8/DO 8 x DC 24 V/0.5 A
①
Channel number
②
Status displays - green
③
Backplane bus interface
SM 323; DI 8/DO 8 x DC 24 V/0.5 A - Technical specifications
Technical specifications
Dimensions and weight
Dimensions W x H x D (mm)
40 x 125 x 117
Weight
ca. 200 g
Module-specific data
Supports isochronous mode
no
Number of inputs 8
Number of outputs
8
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
