Digital modules

3.39 Programmable digital IO module SM 327; DI 8/DO 8 x DC 24 V/0.5 A (6ES7327-1BH00-0AB0)

S7-300 Module data

232 Manual, 06/2017, A5E00105505-AJ

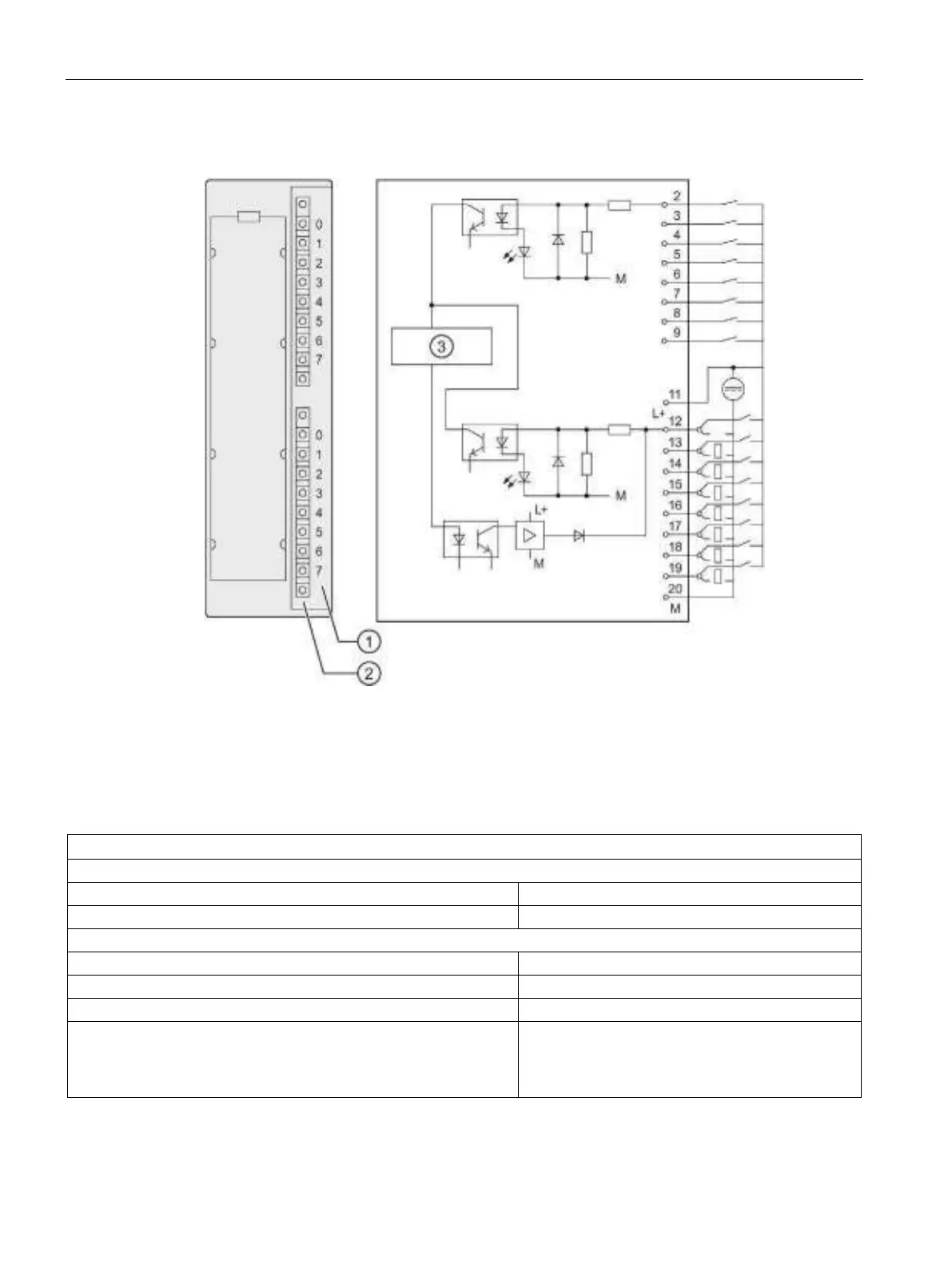

Wiring and block diagram of SM 327; DI 8/DO 8 x DC 24 V/0.5 A, programmable

①

Channel number

②

Status display - green

③

Backplane bus interface

Technical specifications of SM 327; DI 8/DO 8 x DC 24 V/0.5 A, programmable

Technical specifications

Dimensions and weight

Dimensions W x H x D (mm)

40 x 125 x 120

Weight

ca. 200 g

Module-specific data

Supports isochronous mode

Number of inputs

8 digital

Number of inputs/outputs

8, can be programmed separately

Cable length

• unshielded

• shielded

max. 600 m

max. 1000 m
