Principles of analog value processing

4.4 Wiring and connecting current transducers

S7-300 Module data

246 Manual, 06/2017, A5E00105505-AJ

Wiring and connecting 2-wire transducers with power supply from L+

Configure the 2-wire as a 4-wire transducer in

STEP 7

if it is connected to supply voltage L+.

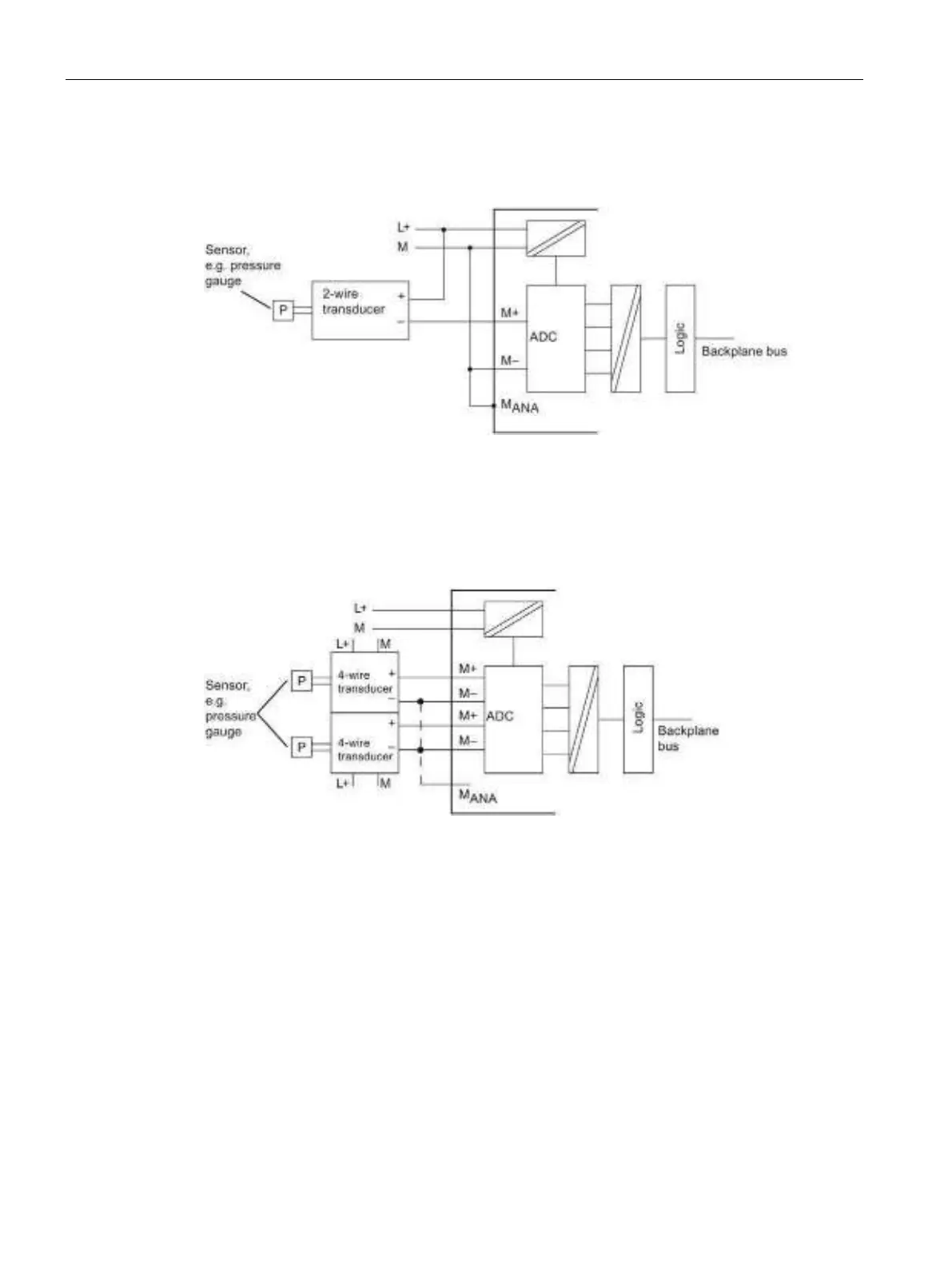

Figure 4-7 Wiring and connecting a 2-wire transducer with supply from L + to an electrically isolated

Wiring and connecting 4-wire transducers

4-wire transducers are connected to a separately power supply.

Figure 4-8 Wiring and connecting 4-wire transducers to electrically isolated AI
