Principles of analog value processing
4.7 Wiring and connecting loads/actuators to analog outputs
S7-300 Module data
Manual, 06/2017, A5E00105505-AJ
259
Wiring 2-wire loads to the voltage output of non-isolated module
Wire the loads to the Q
V
terminals and to the reference point of measuring circuit M
ANA
.
Interconnect terminal S+ to Q
V
with terminal S to M
ANA
in the front connector.
A 2-wire circuit does not provide for compensation of line impedance.

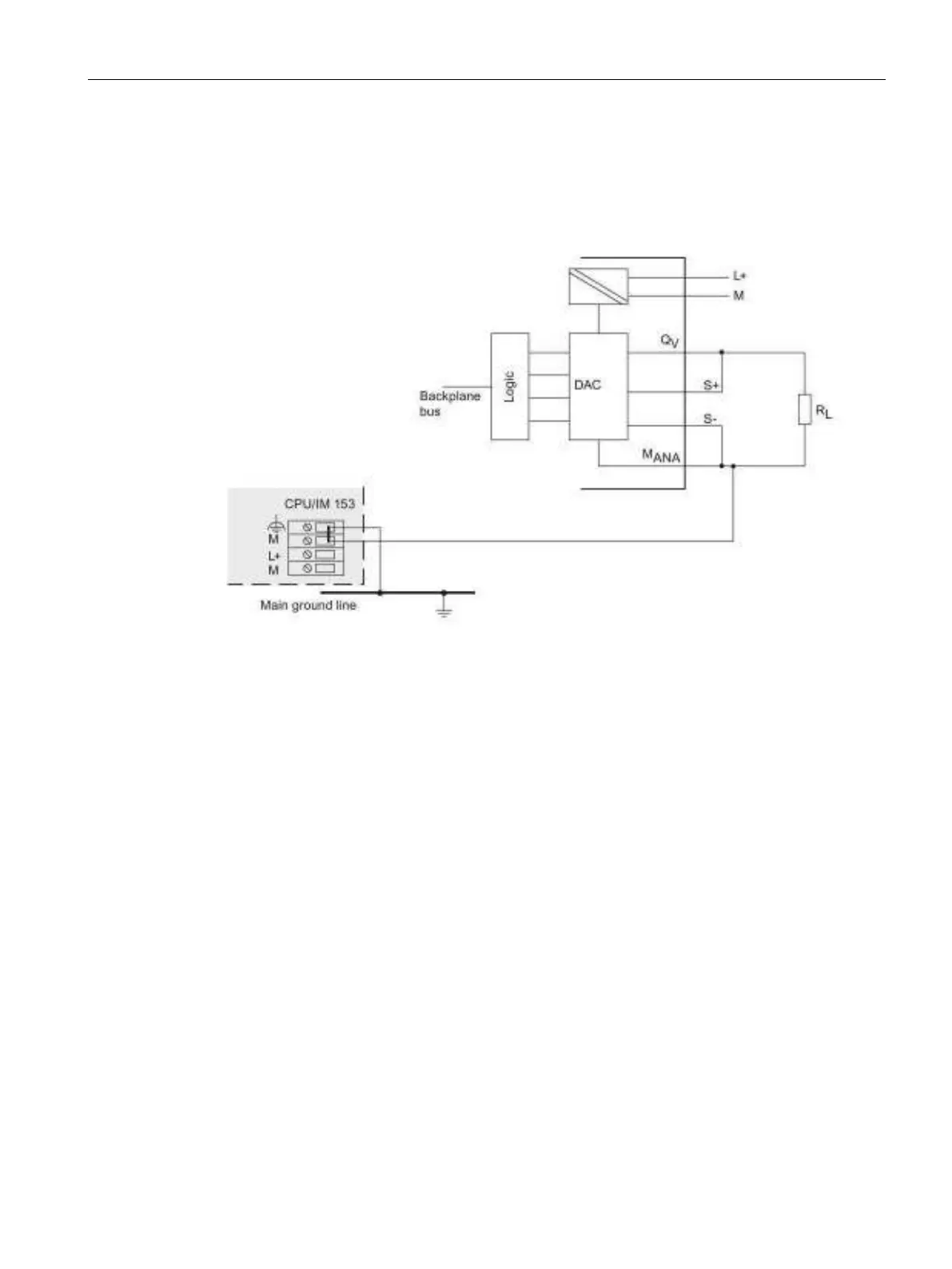

Figure 4-18 2-wire connection of loads to the voltage output of a non-isolated analog module
See also
Wiring and connecting loads/actuators to analog outputs (Page 257)
