Principles of analog modules

5.5 Conversion and cycle times of analog modules

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

291

Examples

The figures below show the number of cycles a module requires to apply a close to 100%

smoothed analog value after a step response, based on the smoothing function settings. The

figure applies to all signal changes at the analog input.

①

Low smoothing grade

②

Medium smoothing grade

③

High smoothing grade

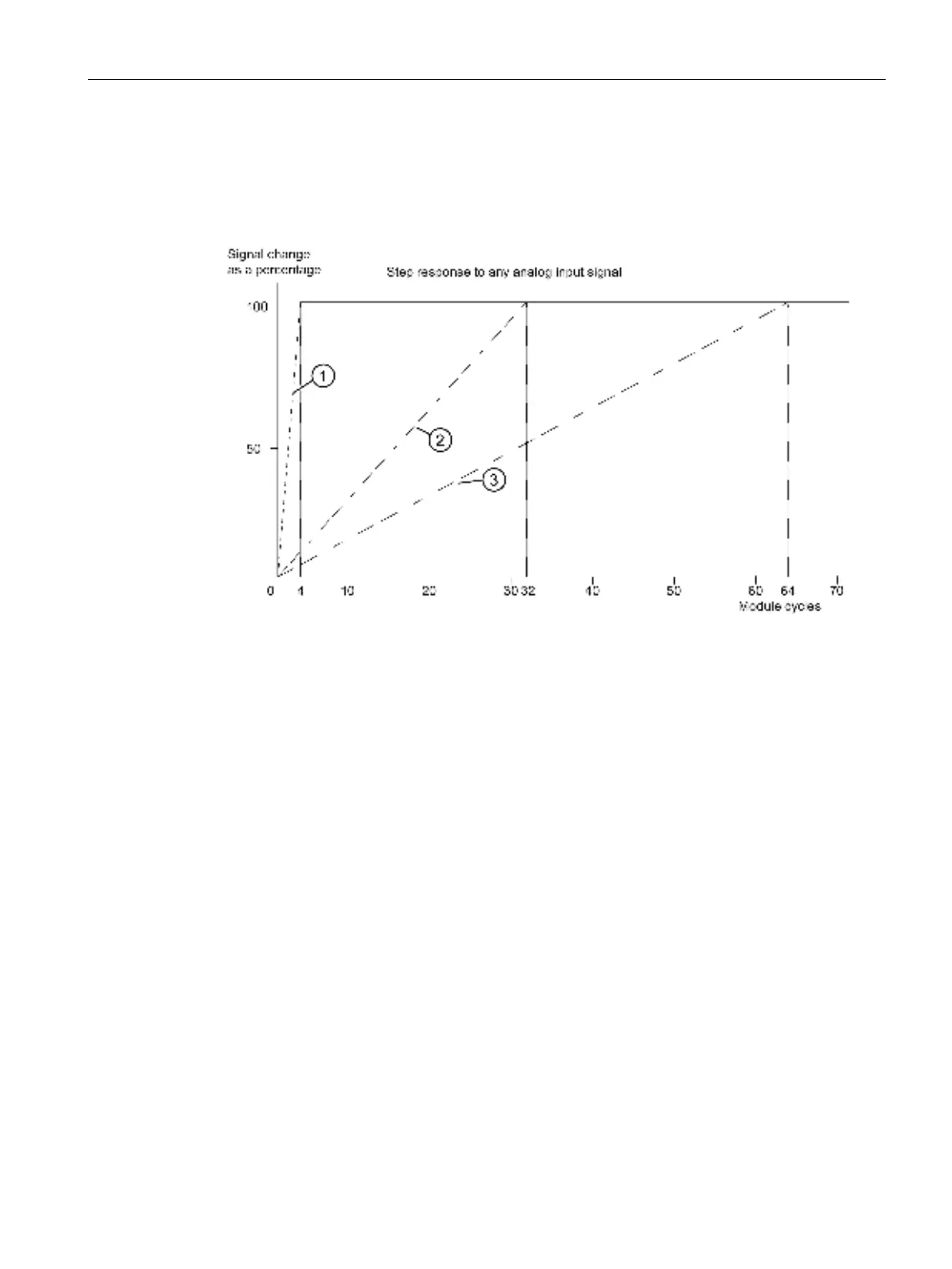

Figure 5-5 Example of impact of smoothing on the jump response with the AI 8 x 14 bit
