Analog modules

6.7 Analog input module SM 331; AI 8 x 12 bit;(6ES7331-7KF02-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

357

Wiring: Thermocouples with external compensation

Insert a bridge between Comp+ and M

ANA

when using the internal compensation.

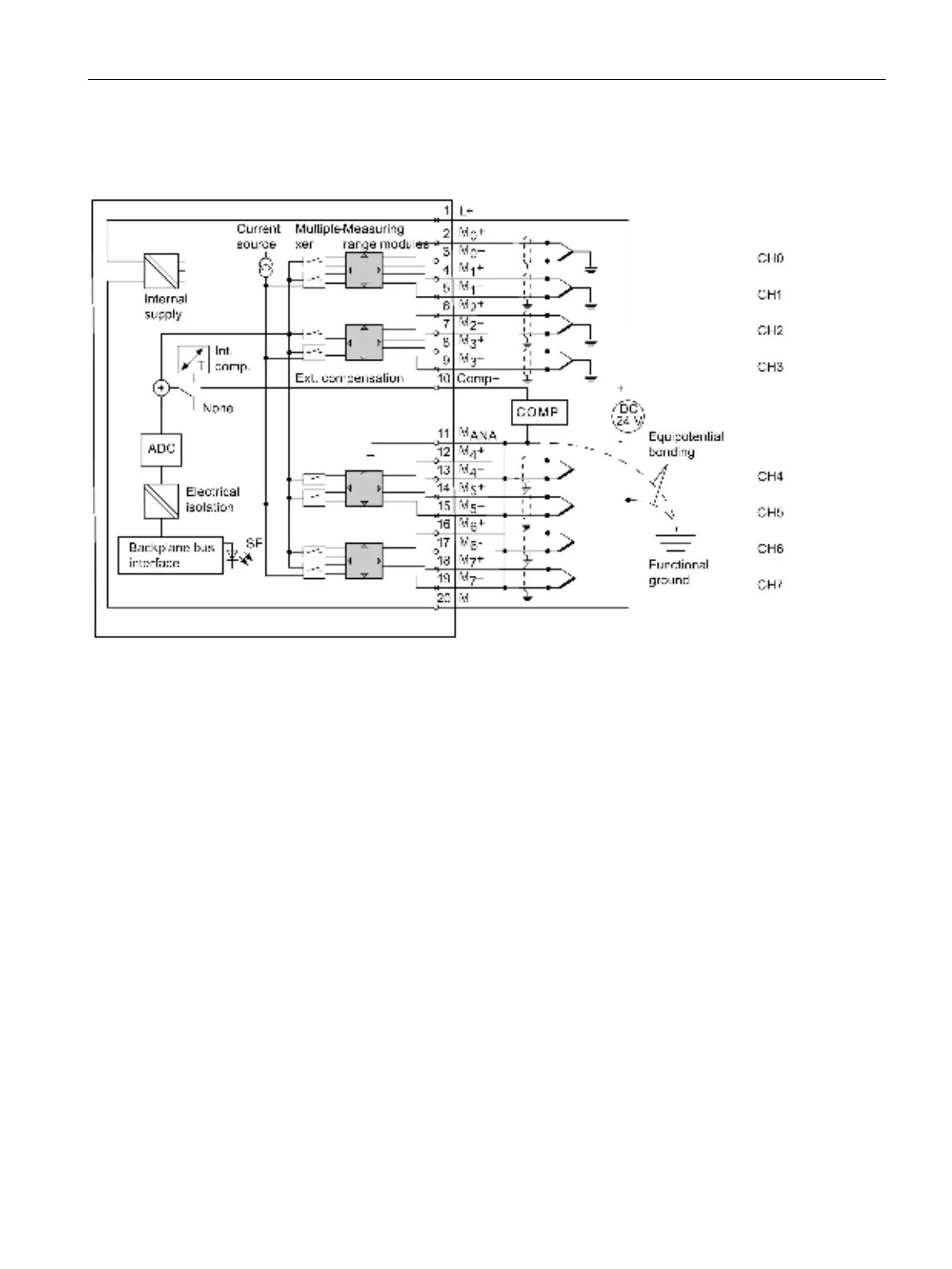

Figure 6-16 Block diagram and wiring diagram
