Analog modules

6.11 Analog input module SM 331, AI 6 x TC isolated (6ES7331-7PE10-0AB0)

S7-300 Module data

436 Manual, 06/2017, A5E00105505-AJ

Calibration values:

● Offset: Currently active offset for the analog digital converter

● Gain: Currently active gain for the analog digital converter

● CJ Offset: Currently active temperature offset for the internal reference-temperature

sensor (only relevant for TC-IL thermocouples)

● TC Gain: Currently active gain for recording the temperature (only relevant for TC-IL,

TC-EL, TC-L00C, and TC-L50C thermocouples)

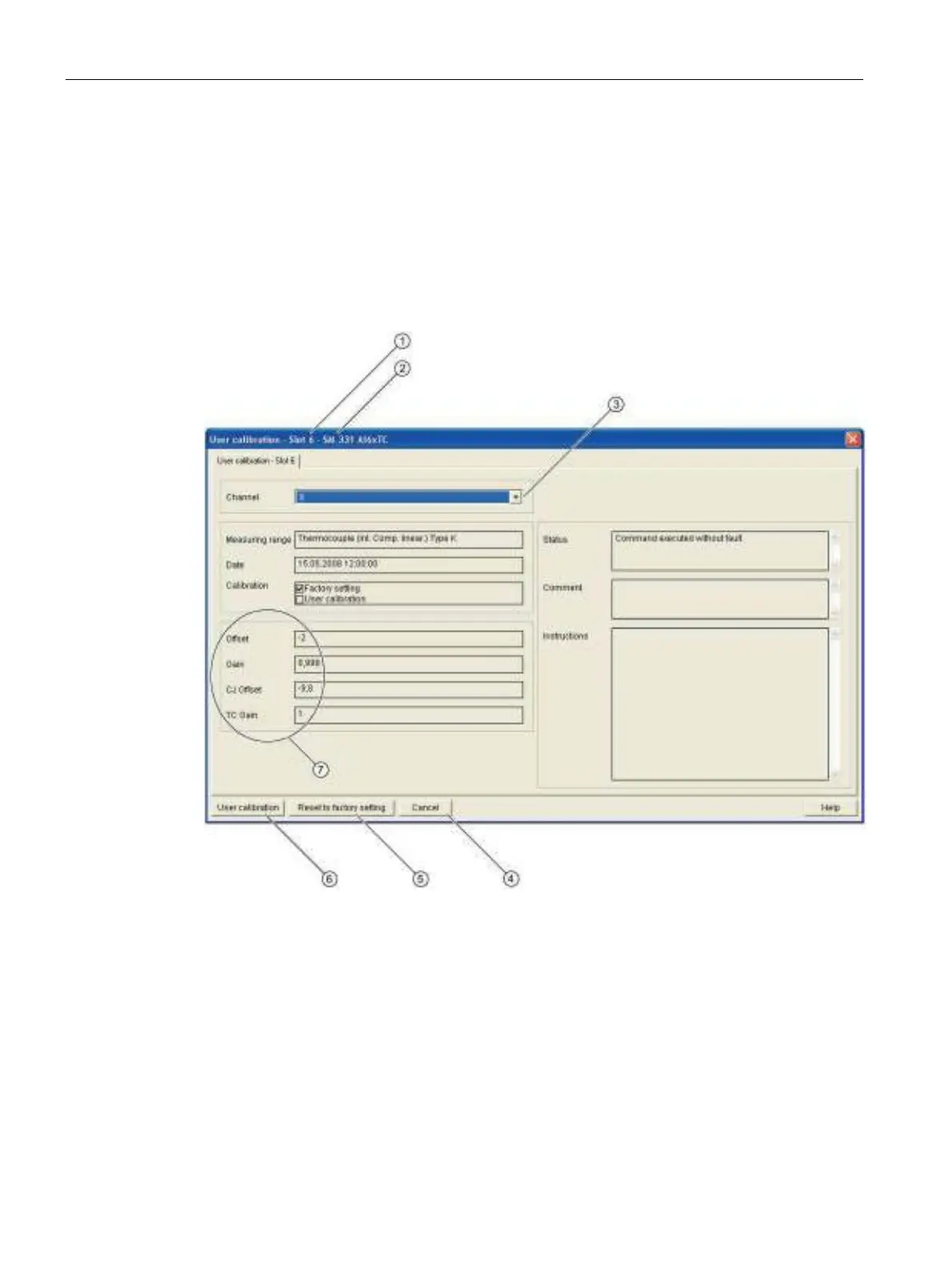

①

Slot address of the module

②

Current system ID (HID)

③

Selection of the channel to be calibrated

④

Cancels the calibration function

⑤

Resets the calibration values of the selected channel to the factory settings

⑥

Starts user calibration for the selected channel

⑦

Current calibration values

Figure 6-38 User-calibration values
