Analog modules

6.12 Analog output module SM 332; AO 8 x 12 bit; (6ES7332-5HF00-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

443

Wiring: 2 and 4-wire connection for voltage output

The following image depicts:

● 2-wire connection, no compensation for line impedance and

● 4-wire connection with compensation for line impedance

①

DAC

②

Internal supply

③

Equipotential bonding

④

Functional ground

⑤

Backplane bus interface

⑥

Electrical isolation

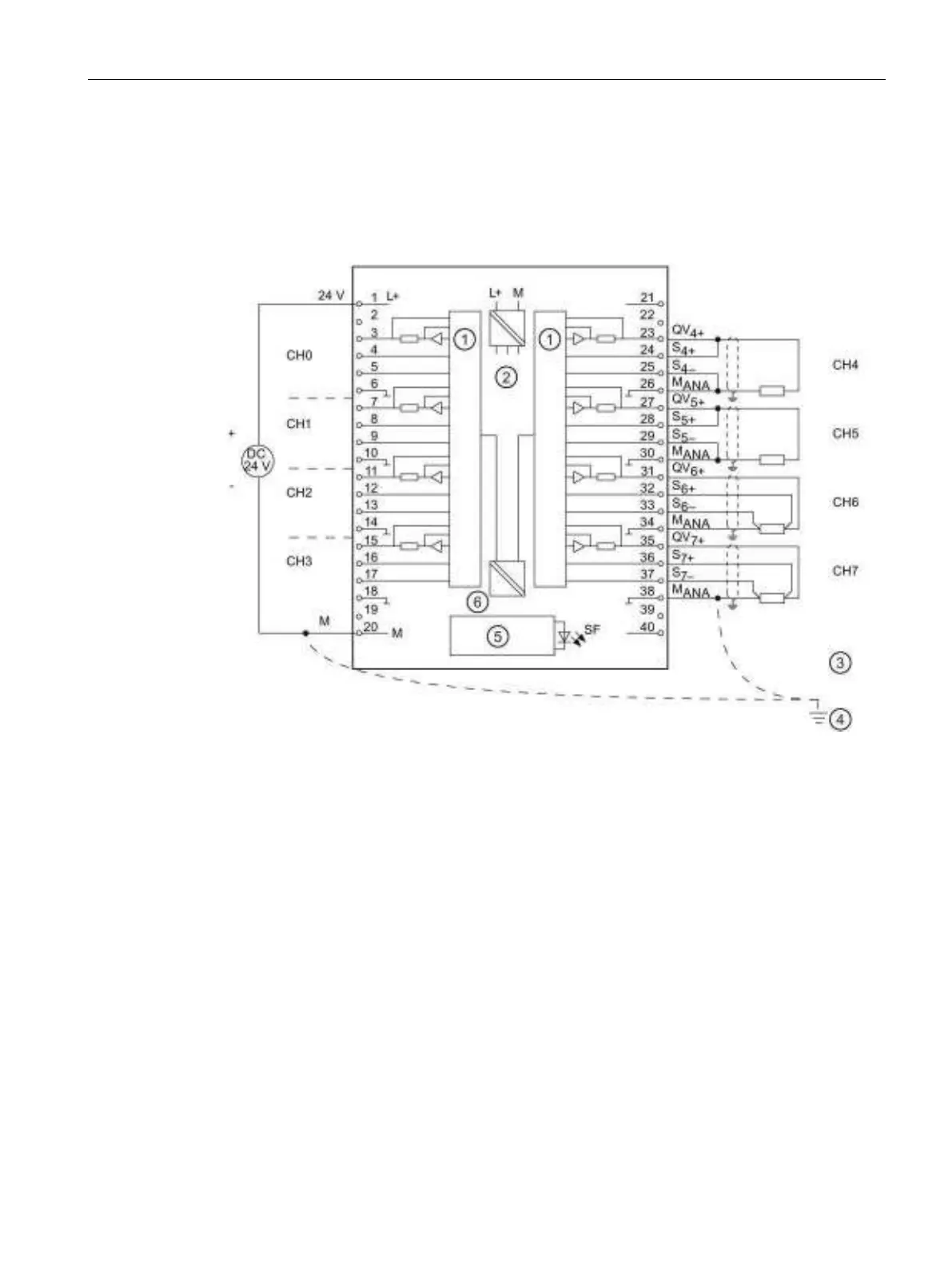

Figure 6-41 Wiring and block diagram
