Analog modules

6.13 Analog output module SM 332; AO 4 x 16 bit; isochrone; (6ES7332-7ND02-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

451

Wiring: 4-wire connection

①

Backplane bus interface

②

Electrical isolation

③

Equipotential bonding

④

Functional ground

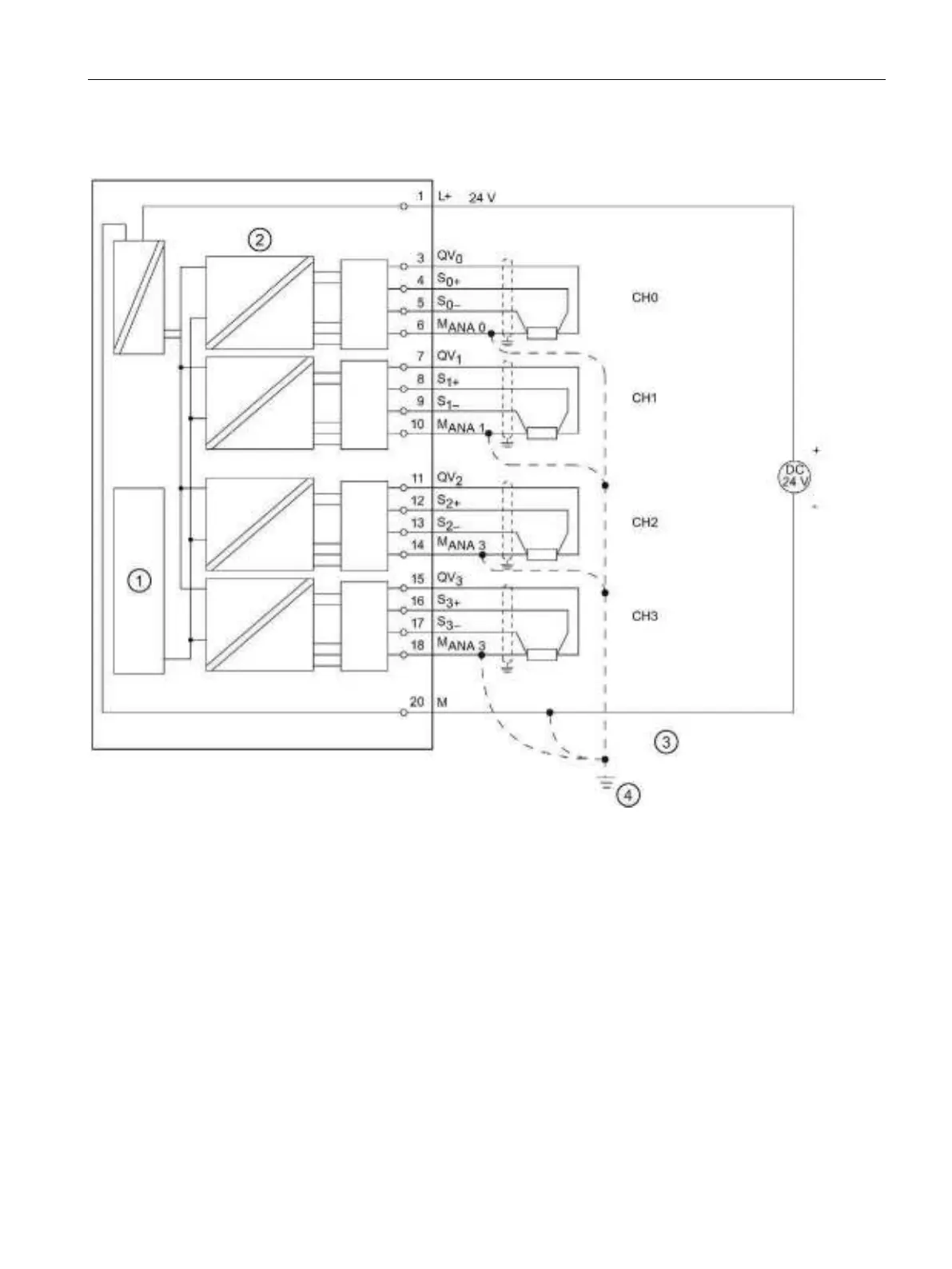

Figure 6-43 Wiring and block diagram
