Analog modules

6.15 Analog output module SM 332; AO 2 x 12 Bit; (6ES7332-5HB01-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

469

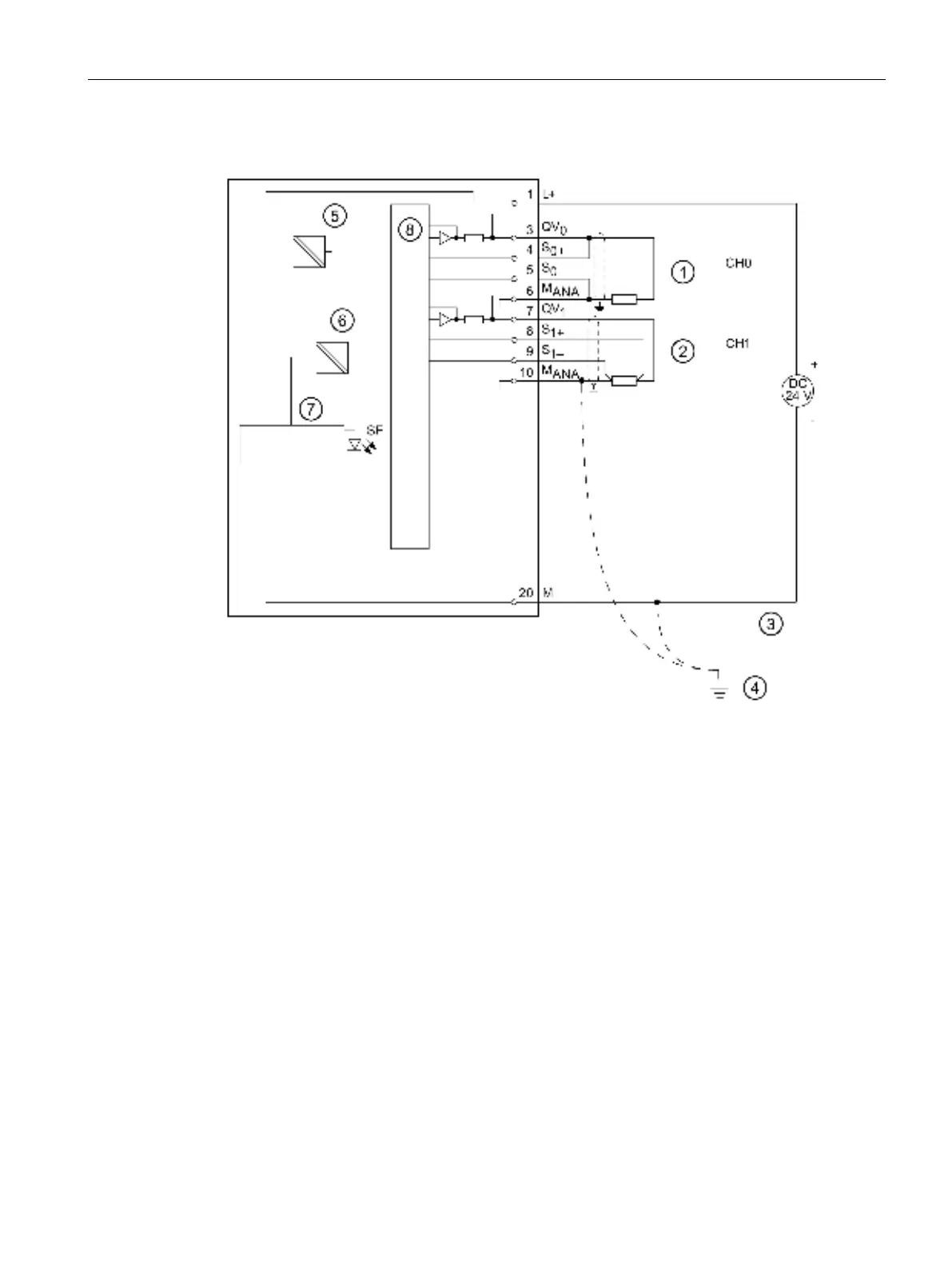

Wiring: 2 and 4-wire connection for voltage output

①

2-wire connection: no compensation for line impedance

②

4-wire connection: with compensation for line impedance

③

Equipotential bonding

④

Functional earthing

⑤

Internal supply

⑥

Electrical isolation

⑦

Backplane bus interface

⑧

Analog-to-Digital Converter (ADC)

Figure 6-48 Wiring and block diagram
