Analog modules

6.16 Analog IO module SM 334; AI 4/AO 2 x 8/8 Bit; (6ES7334-0CE01-0AA0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

477

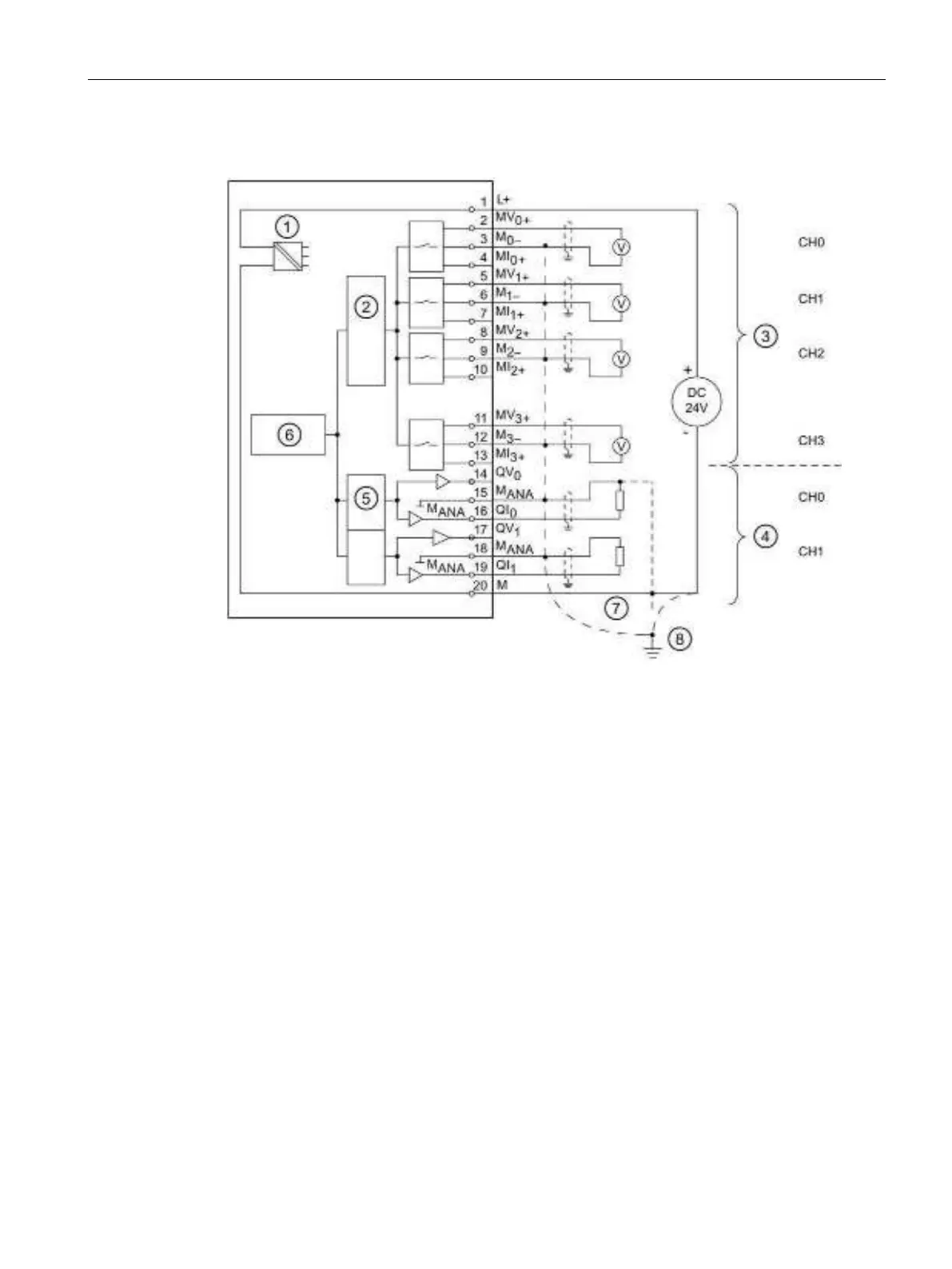

Wiring: Voltage measurement and current output

①

Internal supply

②

Analog-to-Digital Converter (ADC)

③

Inputs: Voltage measurement

④

Outputs: Voltage output

⑤

Digital-to-Analog Converter (DAC)

⑥

Backplane bus interface

⑦

Equipotential bonding

⑧

Functional earthing

Figure 6-50 Wiring and block diagrams
