Analog modules

6.17 Analog IO module SM 334; AI 4/AO 2 x 12 bit; (6ES7334-0KE00-0AB0)

S7-300 Module data

486 Manual, 06/2017, A5E00105505-AJ

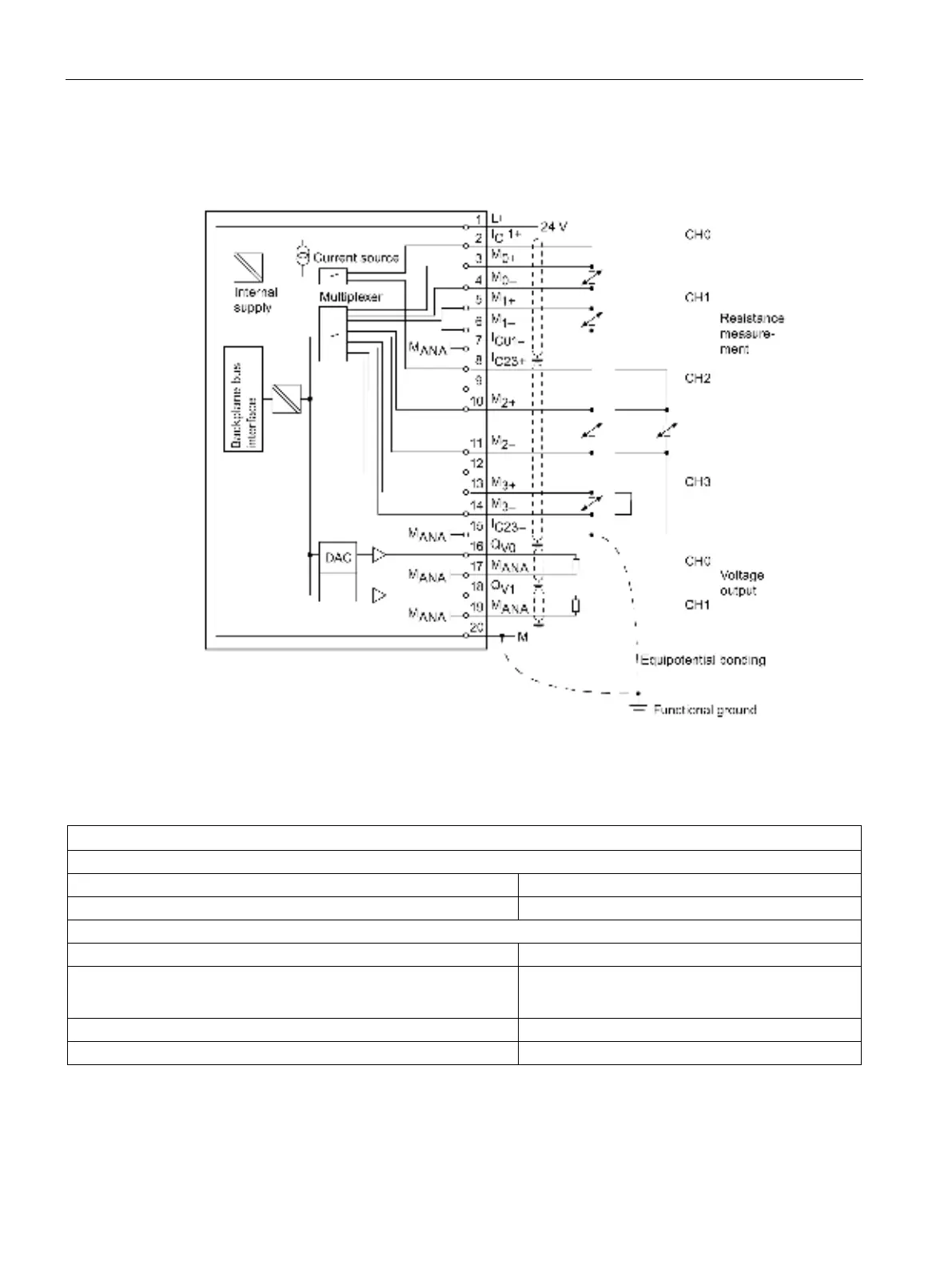

Wiring: Resistance measurement and voltage output

Figure 6-53 Wiring and block diagram

Technical specifications

Dimensions and weight

Dimensions W x H x D (mm)

40 x 125 x 117

Weight

approx. 200 g

Module-specific data

Supports isochronous mode

Number of inputs

• with resistive transducers

Number of outputs

Shielded cable length

max. 100 m
