Other signal modules

7.2 Simulator module SM 374; IN/OUT 16; (6ES7374-2XH01-0AA0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

495

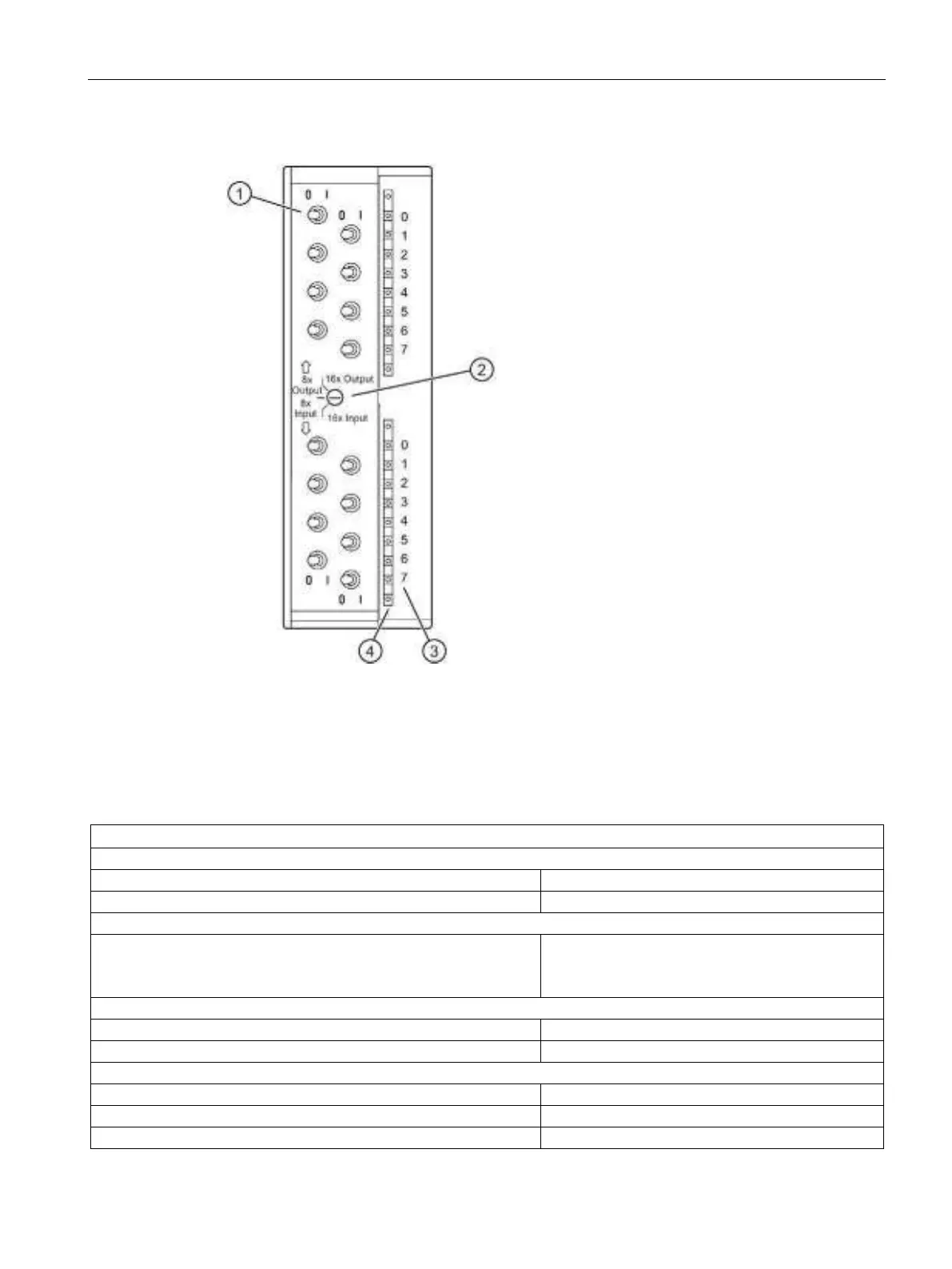

Module view (without front panel door)

①

Input status selector switch

②

Function selector switch

③

Channel number

④

Status displays - green

Technical data of SM 374; IN/OUT 16

Technical data

Dimensions and weight

Dimensions W x H x D (mm)

40 x 125 x 110

Weight

approx. 190 g

Module-specific data

Optional simulation of 16 inputs

16 outputs

8 inputs and 8 outputs

Voltages, currents, electrical potentials

Current consumption from the backplane bus

max. 80 mA

Power loss of the module

typ. 0.35 W

Status, interrupts, diagnostics

Status display

yes, green LED for each channel

Interrupts

Diagnostics functions
