Interface modules

8.3 Interface module IM 361; (6ES7361-3CA01-0AA0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

519

Front view

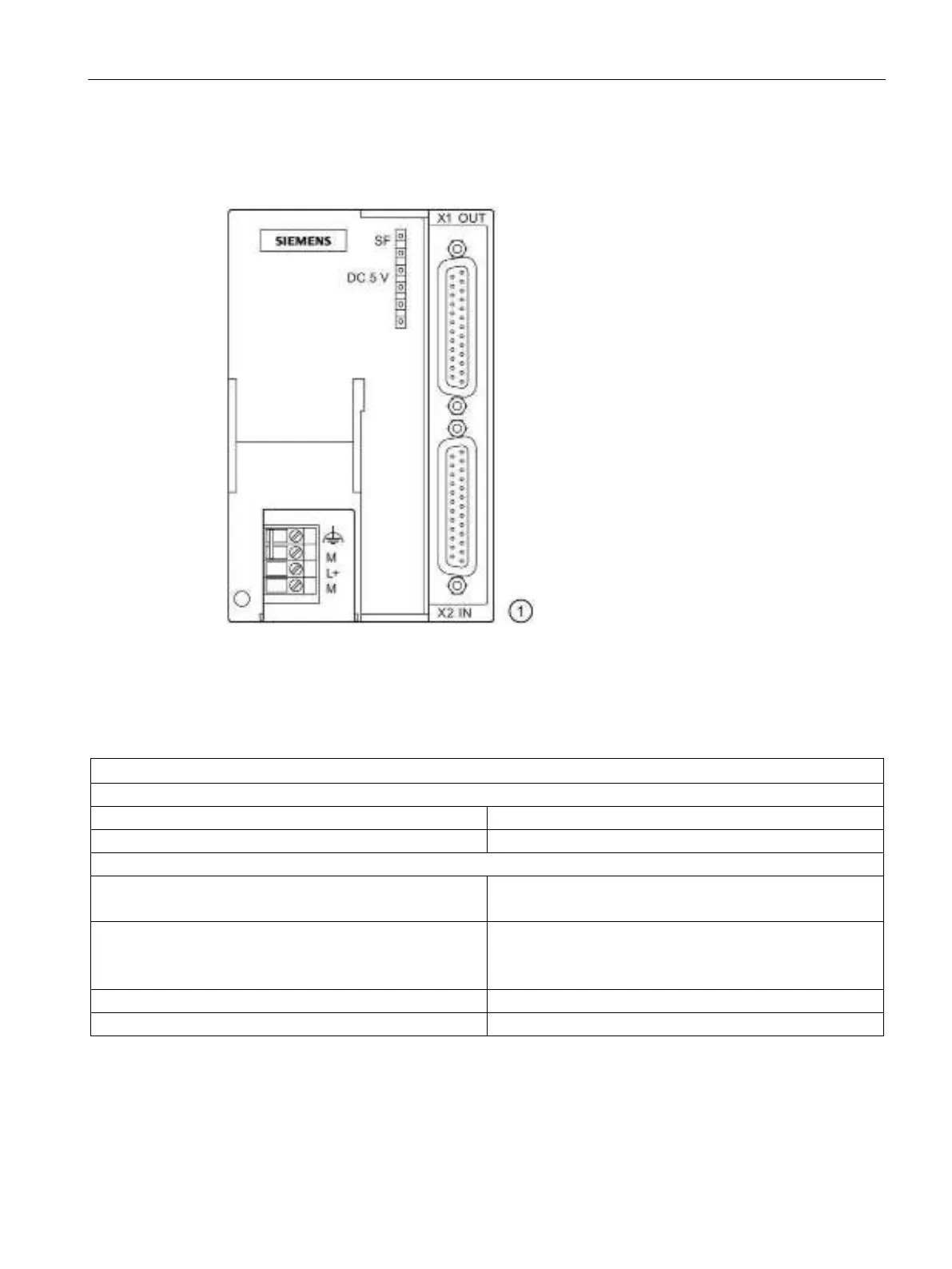

The figure below shows the front view of interface module IM 361

①

Front view

Technical data

The overview below shows the technical data of interface module IM 361.

Technical data

Dimensions and weight

Dimensions W x H x D (mm)

80 x 125 x 120

Weight

505 g

Module-specific data

Cable length

Maximum length to next IM

10 m

Current consumption

from 24 VDC

Power loss

0.5 A

typ. 5 W

Current sinking at backplane bus

0.8 A

Status and error LEDs

yes

See also

Spare parts and accessories for S7-300 modules (Page 616)
