Parameter sets of signal modules

A.2 Parameters of digital IO modules

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

525

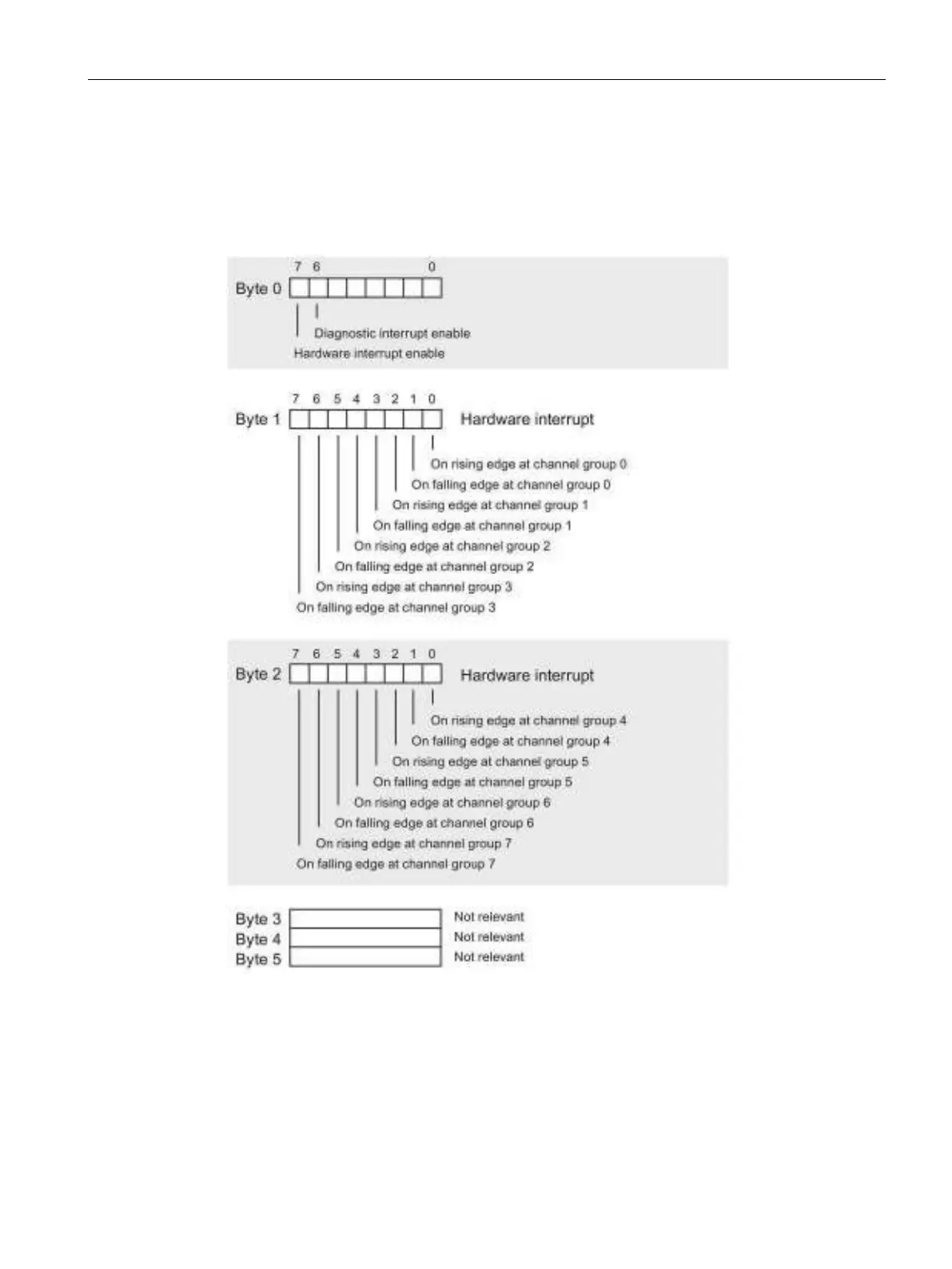

Structure of data record 1

The figure below shows the structure of data record 1 for the parameters of digital input

modules.

You enable a parameter by setting a logical "1" at the corresponding bit.

Figure A-1 Data record 1 for parameters of digital input modules

See also

Diagnostics of digital modules (Page 59)
